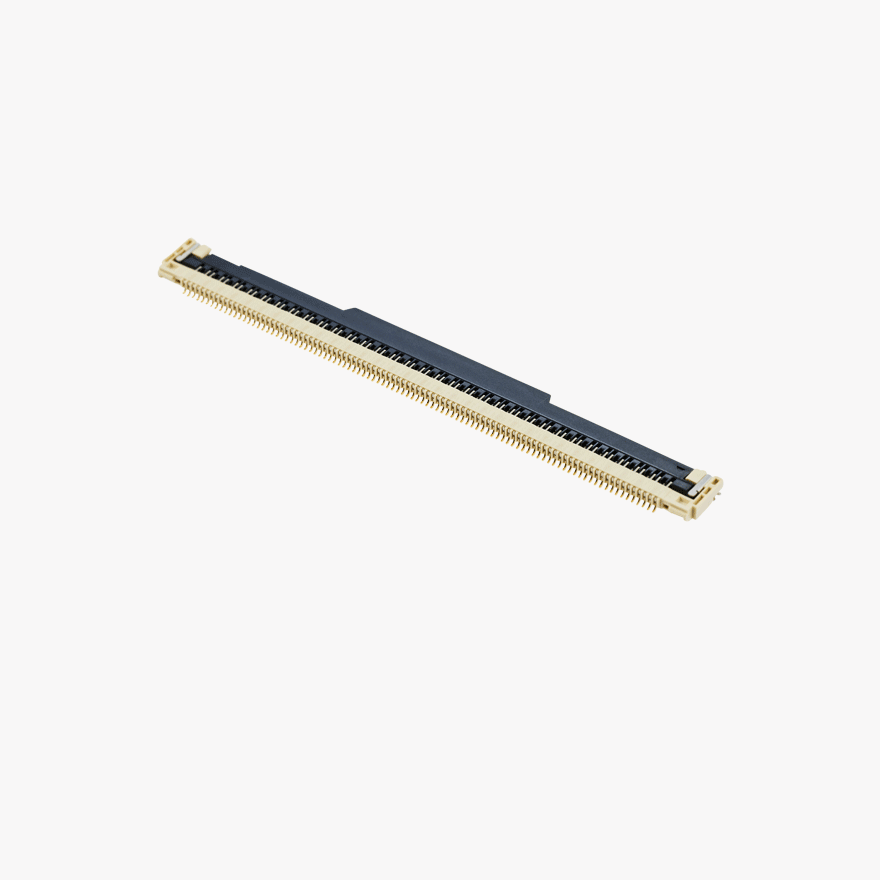

FF050-O96B-C15-A
FB – FFC 0.5Pitch 96Pin 1.5Height ASSY
PRODUCT DESCRIPTION
- Suitable for Space-saving design
- Reliable 2-point Signal contact design
- Applicable for FPC/FFC thickness is 0.30±0.05mm
Technical Details
-
Pitch
(mm) 0.50 - Gender Front Flip Connectors
- Connector Style
- Number of Positions 96
-
Current Rating
(A) 0.5A Max. -
Contact Resistance
(MΩ (Max.)) 60mΩ Max. -
Insulation Resistance
(MΩ (Min.)) 50MΩ [Min.] -
Dielectric Strength
(AC V) AC 500V -
Temperature Range
(°C) '-20℃ ~ 85℃
- Housing Material LCP
- Housing Colour Natural
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 1.50 -
Connector Size width
(mm) 5.20 -
Connector Size length
(mm) 54.10 -
Mated Size height
(mm) 1.50 -
Mated Size width
(mm) 5.20 -
Mated Size length
(mm) 54.10
