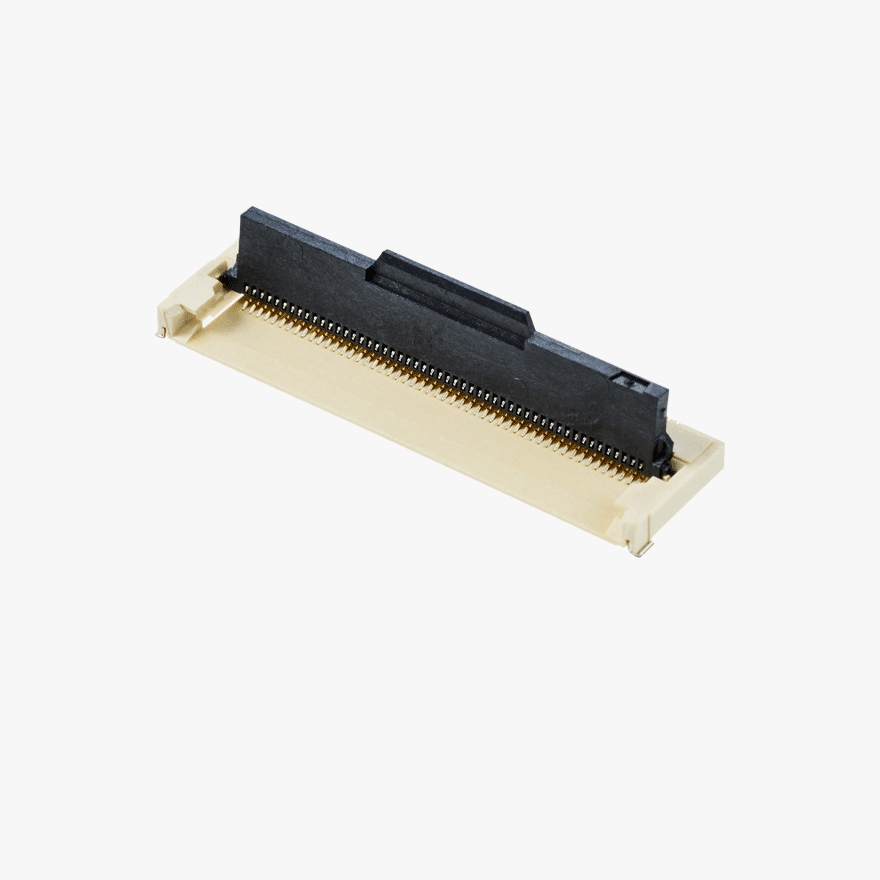

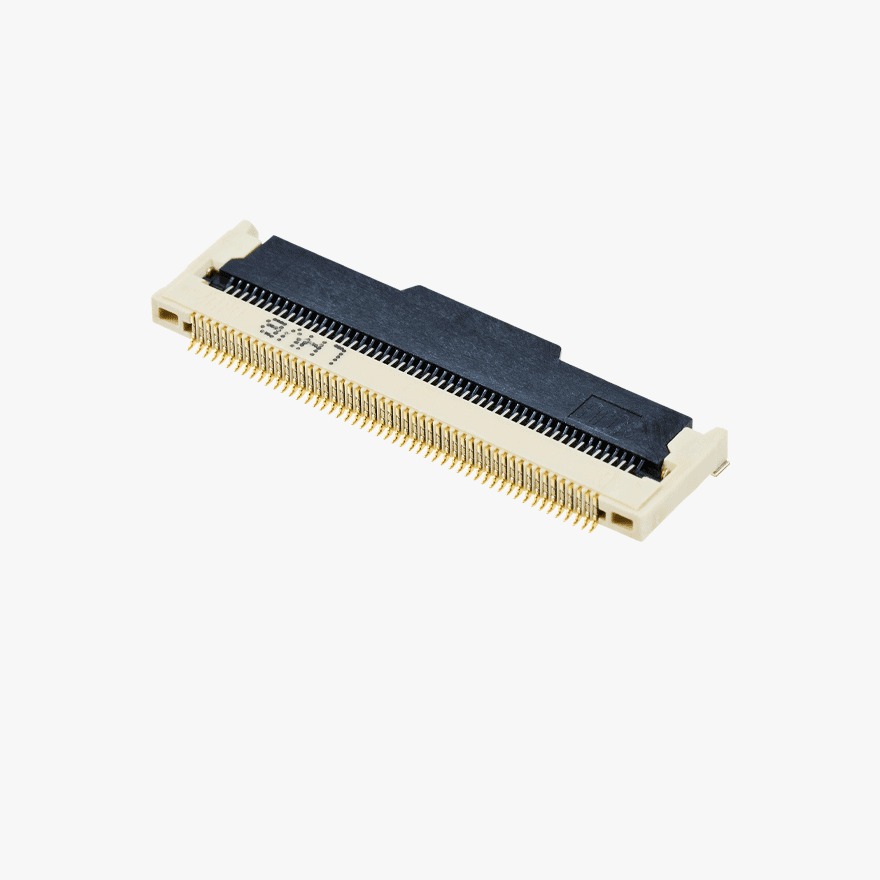

PF050-O**B-C20-C
EROS Series – 0.5Pitch 51/68/80/96Pins 2.20Height DIP ASSY
PRODUCT DESCRIPTION
- Space-saving design
- Two SMT Type (SMD , DIP)
- Reliable 2-point Signal contact design
- Applicable for FPC/FFC thickness is 0.32±0.03mm
Technical Details
-
Pitch
(mm) 0.50 - Gender Front Flip Connectors
- Connector Style
- Number of Positions 51
-
Current Rating
(A) 0.5A Max. -
Contact Resistance
(MΩ (Max.)) 30mΩ Max. -
Insulation Resistance
(MΩ (Min.)) 100MΩ [Min.] -
Dielectric Strength
(AC V) AC 250V -
Temperature Range
(°C) '-45℃ ~ 85℃
- Housing Material LCP
- Housing Colour Natural
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 2.20 -
Connector Size width
(mm) 8.40 -
Connector Size length
(mm) 52.90 -
Mated Size height
(mm) 2.20 -
Mated Size width
(mm) 8.40 -
Mated Size length
(mm) 56.9
