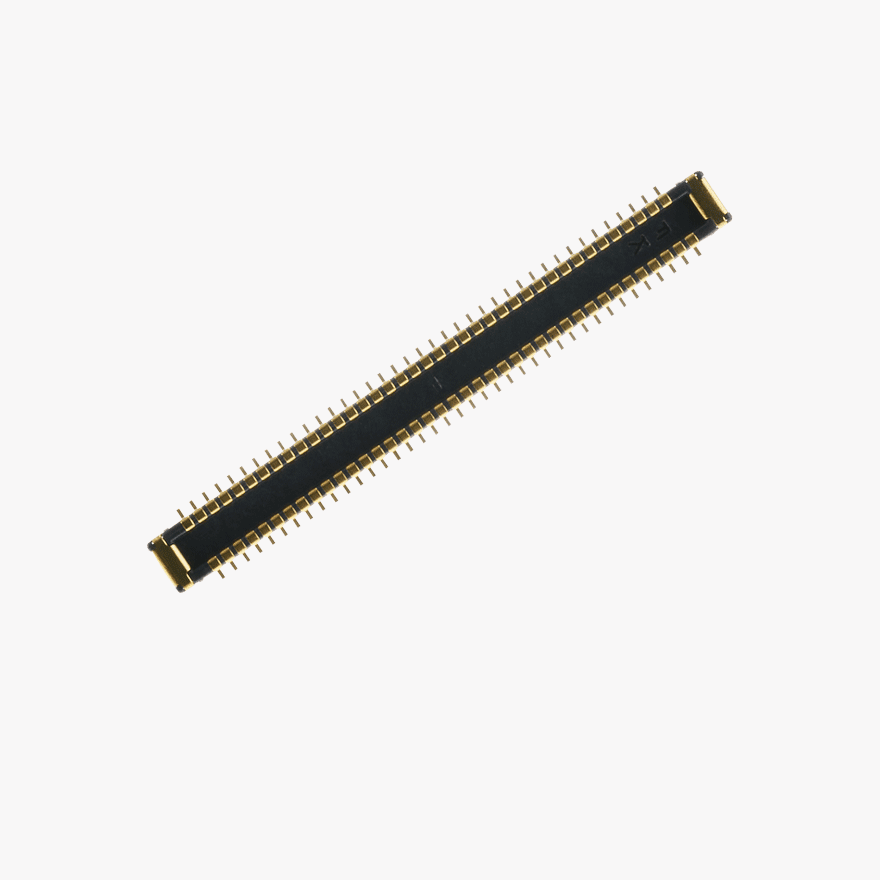

BM035-I78B-C08-C

BI Series 0.35Pitch 78Pin 0.8Height Male

PRODUCT DESCRIPTION

  • For contact stability, Double Contact and Bellows Type Contact Structure
  • 0.35mm pitch, 0.8mm slim stacking design for saving space
  • Functional Fitting Nail
    1) Robust type (Mold Prevention of damage)
    2) High Current
  • Female , Male – Terminal / Fitting Nail Full-Insert Structure
    1) Prevention of Base damage and Reinforcement of strength
    2) Improving product quality reliability

Technical Details

  • Pitch(mm) 0.35
  • Gender Male Connectors
  • Connector Style
  • Number of Positions 78
  • Current Rating(A) Signal 0.3A/Pin & Power 3.0A/Pin
  • Contact Resistance
    (MΩ (Max.))
    Signal 50mΩ [Max.] & Power 10mΩ [Max.]
  • Insulation Resistance
    (MΩ (Min.))
    50MΩ [Min.]
  • Dielectric Strength
    (AC V)
    250V AC(RMS)
  • Temperature Range
    (°C)
    -35℃ ~ 85℃
  • Housing Material LCP
  • Housing Colour BLACK
  • Terminal Material
  • Housing Material UL
    Rating
    UL94V-0
  • Connector Size height
    (mm)
    0.80
  • Connector Size width
    (mm)
    2.30
  • Connector Size length
    (mm)
    16.65
  • Mated Size height
    (mm)
    0.80
  • Mated Size width
    (mm)
    2.30
  • Mated Size length
    (mm)
    16.65
