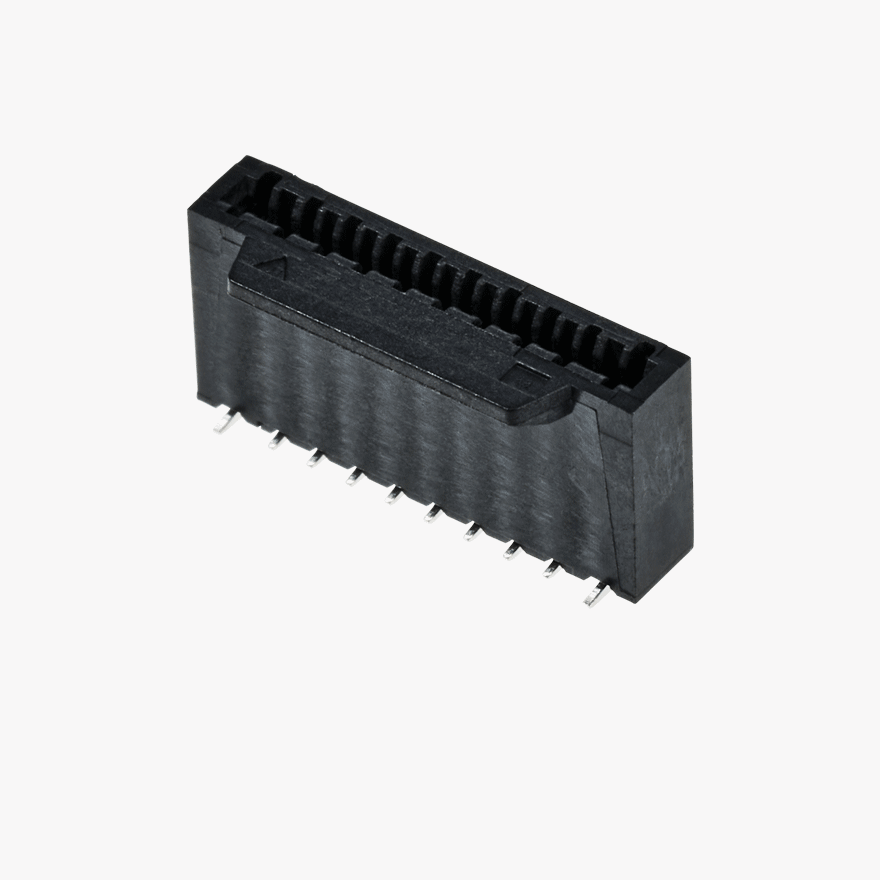

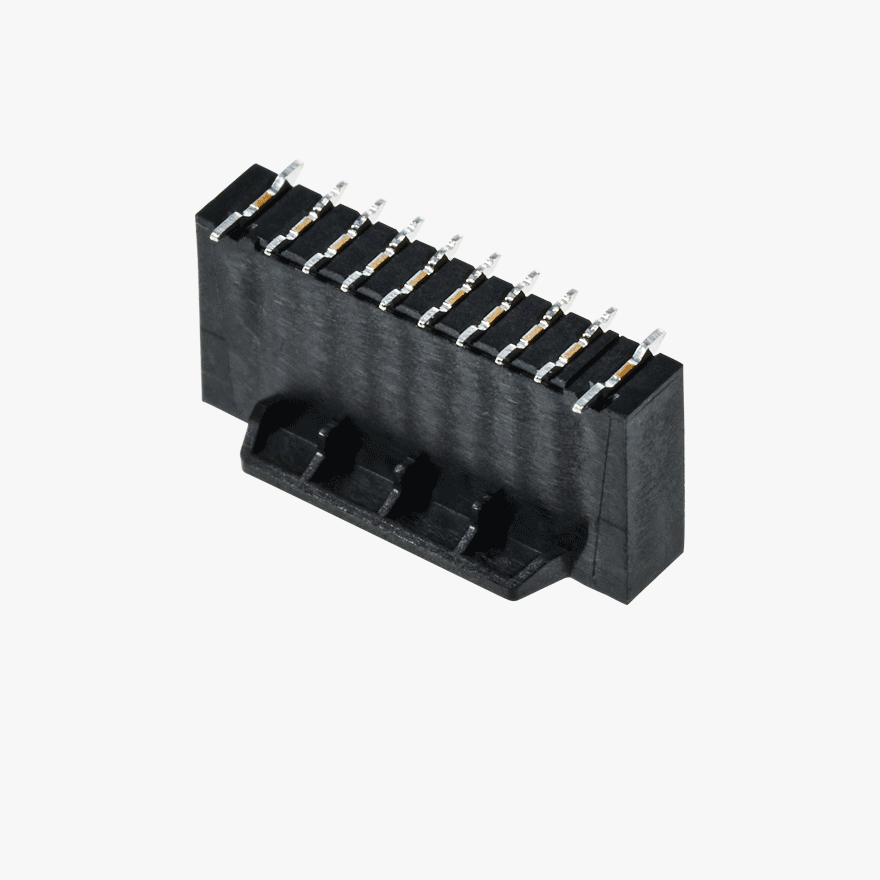

FN100-Z08B-C55
FFC 1.0Pitch 8Pin NON-ZIF – 1.0Pitch 8Pin 5.5Height
PRODUCT DESCRIPTION
- 1.0mm Pitch, 5.5mm Height
- Applicable for FFC thickness is 0.40±0.03mm
Technical Details
-
Pitch
(mm) 1.00 - Gender Female Connectors
- Connector Style Vertical
- Number of Positions 8
-
Current Rating
(A) 1.0A Max. -
Contact Resistance
(MΩ (Max.)) 30mΩ Max. -
Insulation Resistance
(MΩ (Min.)) 500MΩ Min. -
Dielectric Strength
(AC V) AC 500V -
Temperature Range
(°C) '-40℃ ~ 85℃
- Housing Material PA4T
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 5.50 -
Connector Size width
(mm) 3.45 -
Connector Size length
(mm) 11.20 -
Mated Size height
(mm) 5.50 -
Mated Size width
(mm) 3.45 -
Mated Size length
(mm) 11.20
