KH2000032-20

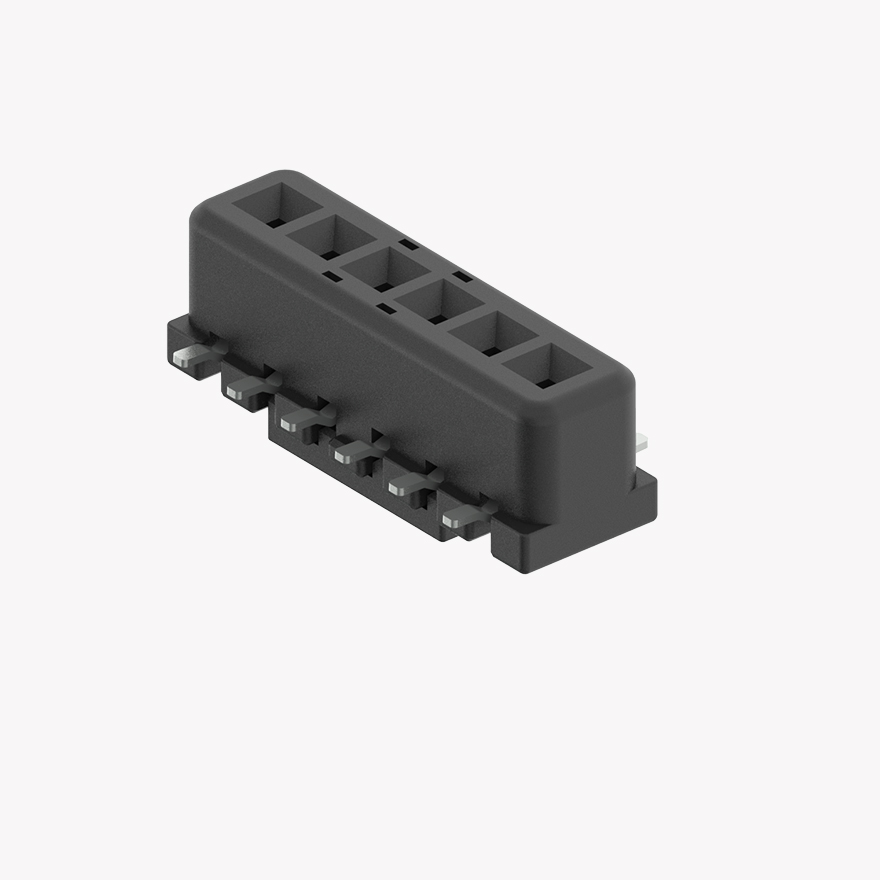

025 6Pin Female Connector Vertical Black Board to Pin

PRODUCT DESCRIPTION

  • The blade width of male Terminal for this Connector is 0.025 inch(0.64mm)
  • The terminal pitch of this connector is 2.9mm
  • Reliability Test Specification : ES91500-03

Technical Details

  • Pitch(mm) 2.9
  • Gender Female Connectors
  • Connector Style Vertical
  • Number of Positions 6
  • Current Rating(A) 3
  • Contact Resistance
    (MΩ (Max.))
    30
  • Insulation Resistance
    (MΩ (Min.))
    100
  • Dielectric Strength
    (AC V)
    500
  • Temperature Range
    (°C)
    -40 ~ +125
  • Reliability Test
    Specifications
    ES91500-03
  • Housing Material LCP-GF30
  • Housing Colour Black
  • Terminal Material
  • Housing Material UL
    Rating
    HB
  • Connector Size height
    (mm)
    5.20
  • Connector Size width
    (mm)
    16.50
  • Connector Size length
    (mm)
    7.40
  • Mated Size height
    (mm)
  • Mated Size width
    (mm)
  • Mated Size length
    (mm)
  • FILE NAME EXTENSION UPDATED DATE
  • KH2000032-20_2D PDF 01/2023 Download
  • KH2000032-20_3D STEP 01/2023 Download
  • FILE NAME EXTENSION UPDATED DATE
  • ES91500-03_PVT PDF 02/2023 Download
