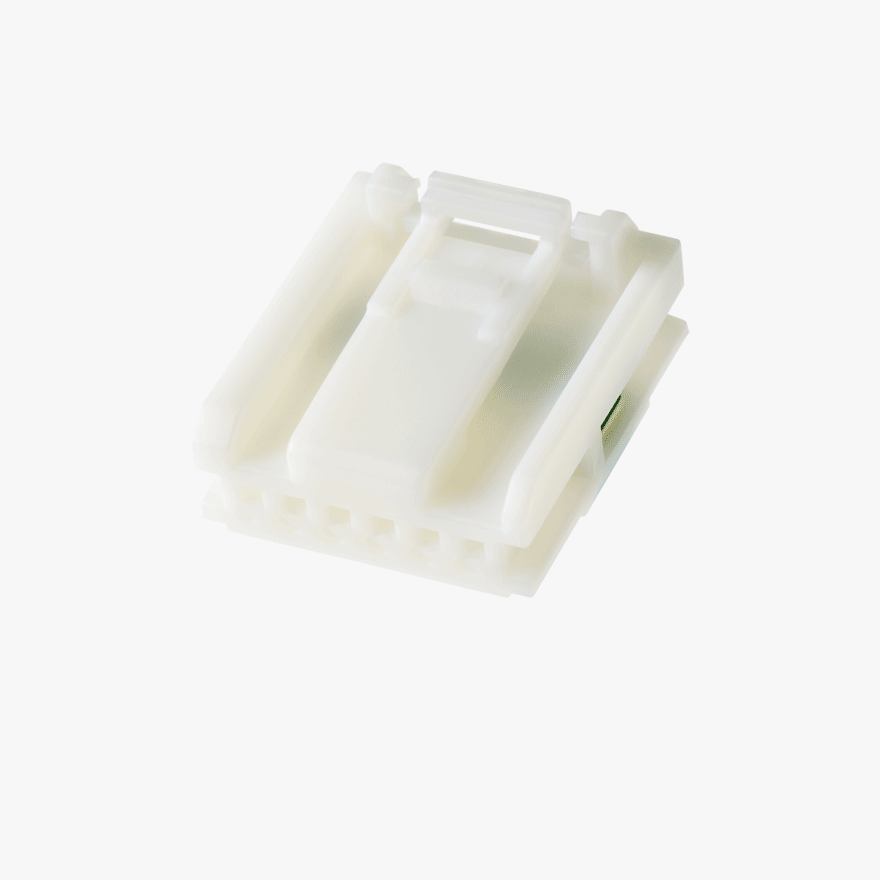

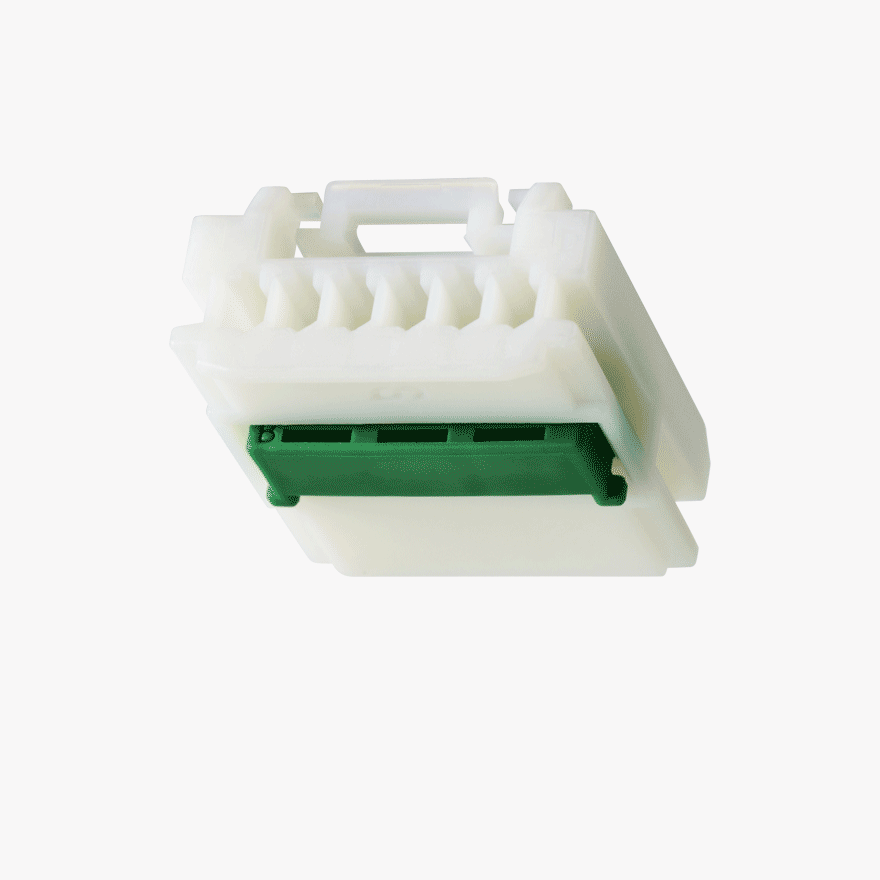

KH1300035-10
025 6Pin Female Connector Natural
PRODUCT DESCRIPTION
- The blade width of male terminal for this connector is 0.025 inch (0.64mm)
- The terminal pitch of this connector is 2.2mm
- This is the standard product about the small connector for 0.025 inch (0.64mm)
- Reliability Test Specification : ES91500-00
Technical Details
-
Pitch
(mm) 2.2 - Gender Female Connectors
- Connector Style
- Number of Positions 6
-
Current Rating
(A) 5 -
Contact Resistance
(MΩ (Max.)) 10 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 1000 -
Temperature Range
(°C) -40 ~ +125 -
Reliability Test
Specifications ES91500-00
- Housing Material PBT
- Housing Colour Natural
- Terminal Material
-
Housing Material UL
Rating HB
-
Connector Size height
(mm) 9.25 -
Connector Size width
(mm) 16.50 -
Connector Size length
(mm) 18.70 -
Mated Size height
(mm) 9.25 -
Mated Size width
(mm) 16.50 -
Mated Size length
(mm) 18.70
- FILE NAME EXTENSION UPDATED DATE
- ES91500-00_PVT PDF 02/2023 Download
