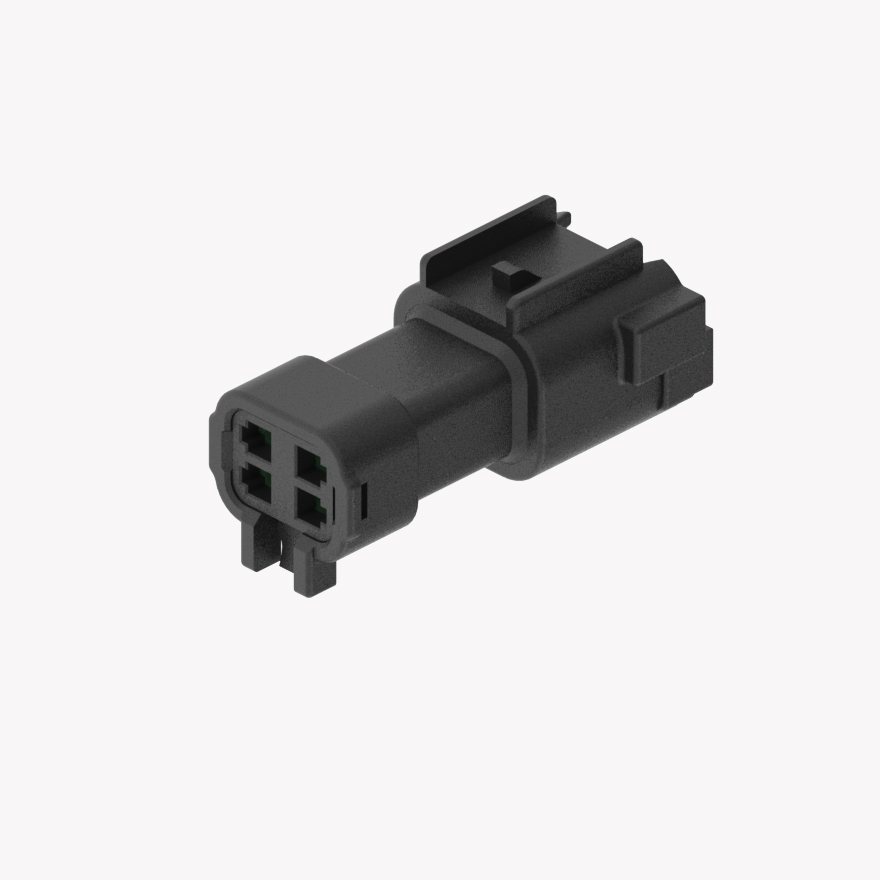

KH1600063-20

020 Sealed 4Pin Male Connector Black Wire to Wire type

PRODUCT DESCRIPTION

  • The applied blade size is 0.5mm(Width)
  • Quality enhancement in waterproof aspect
  • Robust designed water resistant feature
  • This product is satisfied with the IP69K for waterproof performance
  • Reliability Test Specification : SES E 060-07

Technical Details

  • Pitch(mm)
  • Gender Male Connectors
  • Connector Style
  • Number of Positions 4
  • Current Rating(A) 3
  • Contact Resistance
    (MΩ (Max.))
    30
  • Insulation Resistance
    (MΩ (Min.))
    100
  • Dielectric Strength
    (AC V)
    1000
  • Temperature Range
    (°C)
    -40 ~ +125
  • Housing Material PA66-GF30
  • Housing Colour Black
  • Terminal Material
  • Housing Material UL
    Rating
    HB
  • Connector Size height
    (mm)
    11.05
  • Connector Size width
    (mm)
    11.80
  • Connector Size length
    (mm)
    23.50
  • Mated Size height
    (mm)
    11.15
  • Mated Size width
    (mm)
    11.80
  • Mated Size length
    (mm)
    27.90
  • FILE NAME EXTENSION UPDATED DATE
  • KH1600063-20_2D PDF 01/2023 Download
  • KH1600063-20_3D STP 01/2023 Download
