KH2110137-10

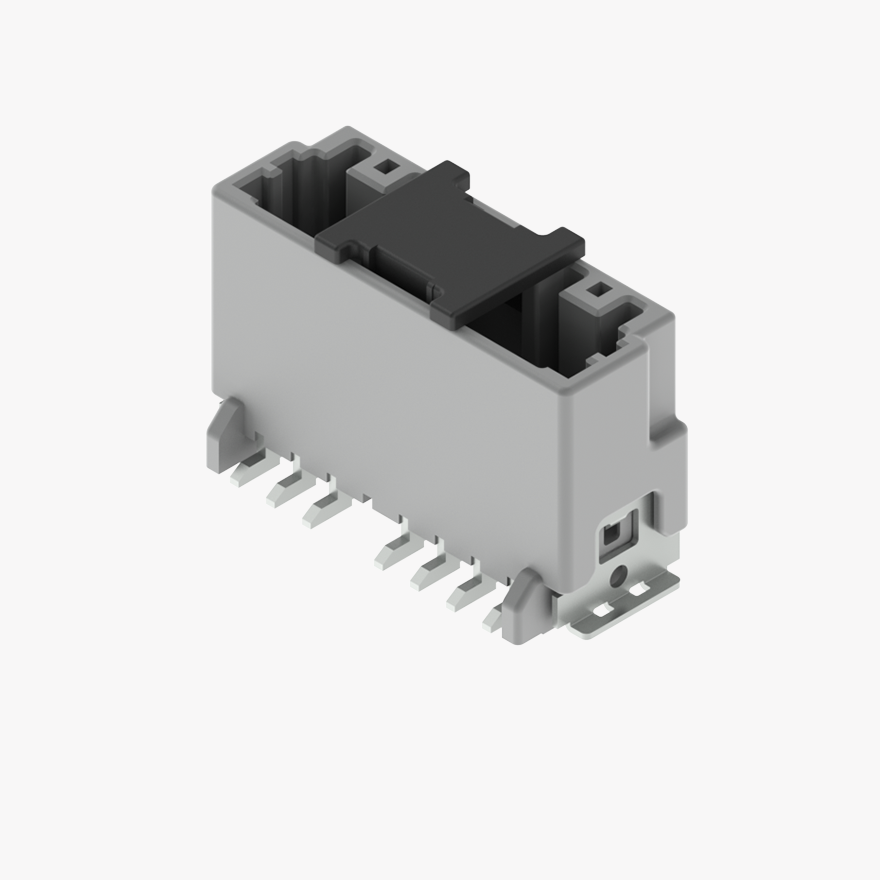

020 Double Lock & CPA 7Pin Male Connector Vertical Natural SMT type AU Terminal Global ver.
PRODUCT DESCRIPTION
- The blade width of male Terminal for this Connector is 0.020 inch (0.5mm)
- The terminal pitch of this connector is 2.0mm
- It has applied the TPA of side type for the assemble workability
- This product is similar size with 020 Series even included the mounted TPA
- Pre-assembled TPA & CPA
- Reliability Test Specification : ES91500-00, ES91500-03, LV214, USCAR-2
Technical Details
-
Pitch
(mm) 2.0 - Gender Male Connectors
- Connector Style Vertical
- Number of Positions 7
-
Current Rating
(A) 5 -
Contact Resistance
(MΩ (Max.)) 10 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 1000 -
Temperature Range
(°C) -40 ~ +125 -
Reliability Test
Specifications LV214, USCAR-2
- Housing Material PA9T-GF30
- Housing Colour Natural
- Terminal Material
-
Housing Material UL
Rating HB
-
Connector Size height
(mm) 12.2 -
Connector Size width
(mm) 20.6 -
Connector Size length
(mm) 8.5 -
Mated Size height
(mm) 15.4 -
Mated Size width
(mm) 20.6 -
Mated Size length
(mm) 9.27
