KH1200007-10

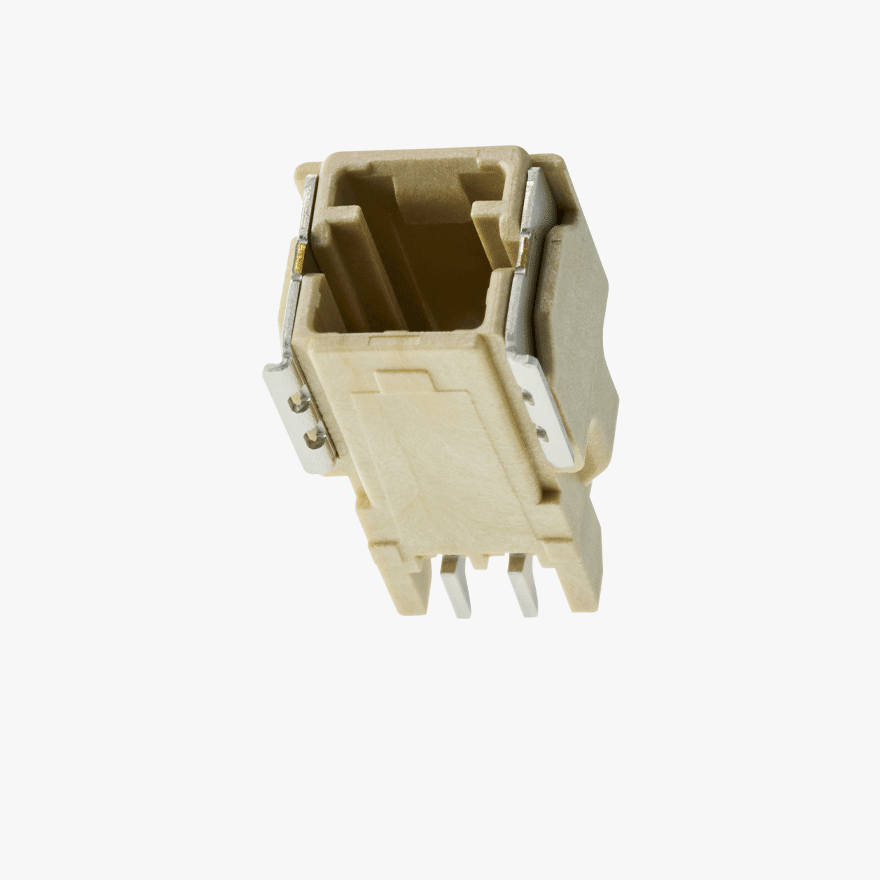

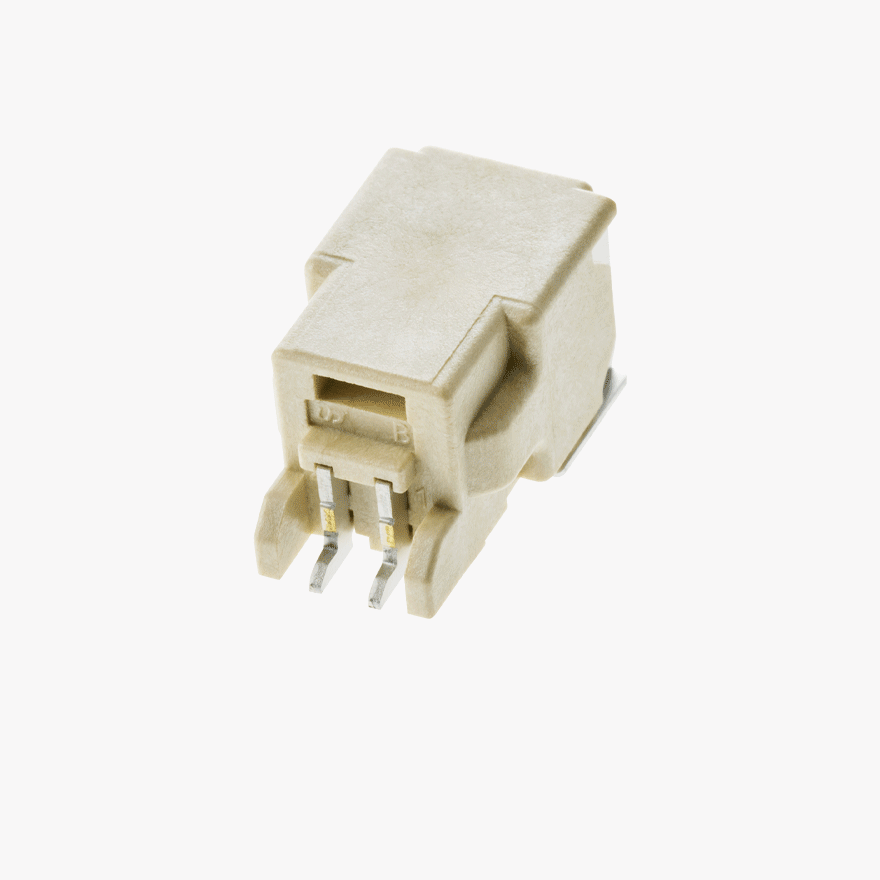

020 2Pin Male Connector Horizontal Natural SMT type
PRODUCT DESCRIPTION
- The blade width of male Terminal for this Connector is 0.020 inch (0.5mm)
- The terminal pitch of this connector is 2.0mm
- Reliability Test Specifications : ES91500-03, GMW3191
Technical Details
-
Pitch
(mm) 2.0 - Gender Male Connectors
- Connector Style Horizontal
- Number of Positions 2
-
Current Rating
(A) 3 -
Contact Resistance
(MΩ (Max.)) 30 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 1000 -
Temperature Range
(°C) -40 ~ +125 -
Reliability Test
Specifications ES91500-03, GMW3191
- Housing Material LCP
- Housing Colour Natural
- Terminal Material
-
Housing Material UL
Rating V0
-
Connector Size height
(mm) 7.20 -
Connector Size width
(mm) 8.00 -
Connector Size length
(mm) 13.20 -
Mated Size height
(mm) 7.65 -
Mated Size width
(mm) 8.00 -
Mated Size length
(mm) 16.20
- FILE NAME EXTENSION UPDATED DATE
- KH1200007-20_2D_pdf PDF 01/2023 Download
