KH1600057-20

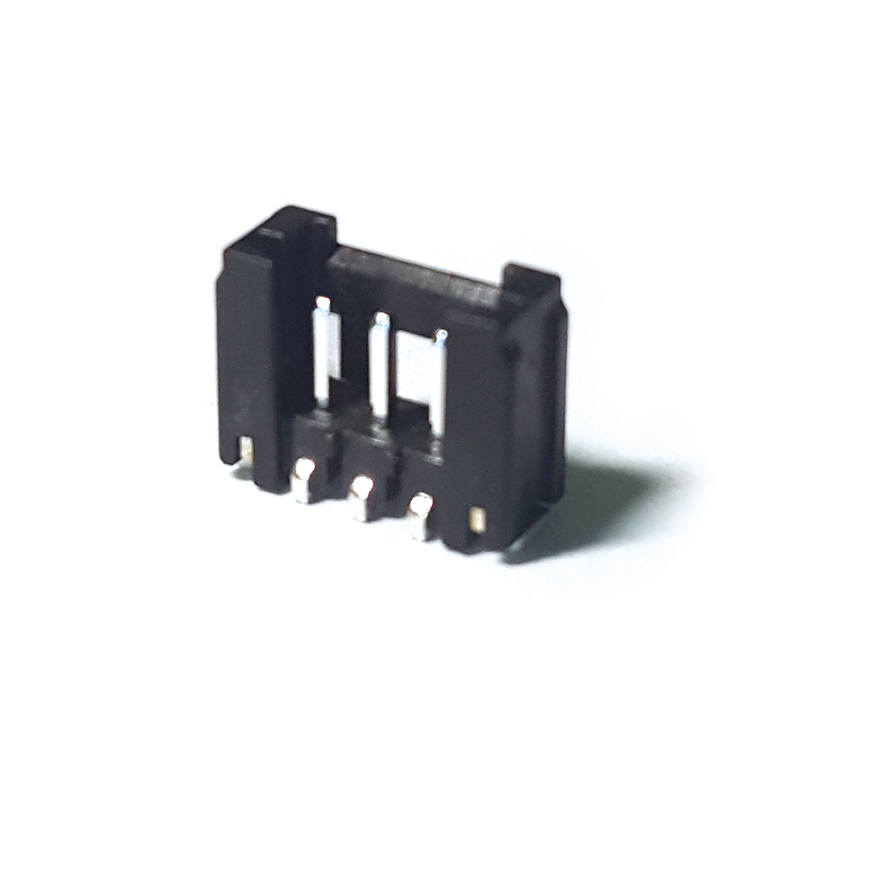

015 3pin Male Connector Vertical Black SMT type

PRODUCT DESCRIPTION

  • The blade width of male Terminal for this connector is 0.015 inch (0.4mm)
  • The terminal pitch of this connector is 1.5mm
  • This is small SMT connector that meets the requirement of the vehicle environment
  • This is a unique connector for 0.015 inch (0.4mm) in the Korea that meets the Automotive Specifications
  • Reliability Test Specification : ES91500-03

Technical Details

  • Pitch(mm) 1.5
  • Gender Male Connectors
  • Connector Style Vertical
  • Number of Positions 3
  • Current Rating(A) 3
  • Contact Resistance
    (MΩ (Max.))
    30
  • Insulation Resistance
    (MΩ (Min.))
    100
  • Dielectric Strength
    (AC V)
    500
  • Temperature Range
    (°C)
    -40 ~ +85
  • Reliability Test
    Specifications
    ES91500-03
  • Housing Material PA9T-GF33
  • Housing Colour Black
  • Terminal Material
  • Housing Material UL
    Rating
    HB
  • Connector Size height
    (mm)
    2.85
  • Connector Size width
    (mm)
    7.42
  • Connector Size length
    (mm)
    5.80
  • Mated Size height
    (mm)
    7.36
  • Mated Size width
    (mm)
    7.42
  • Mated Size length
    (mm)
    2.85
  • FILE NAME EXTENSION UPDATED DATE
  • KH1600057-20_2D_pdf PDF 01/2023 Download
  • KH1600057-20_3D_stp STP 01/2023 Download
  • FILE NAME EXTENSION UPDATED DATE
  • ES91500-03_PVT PDF 02/2023 Download
