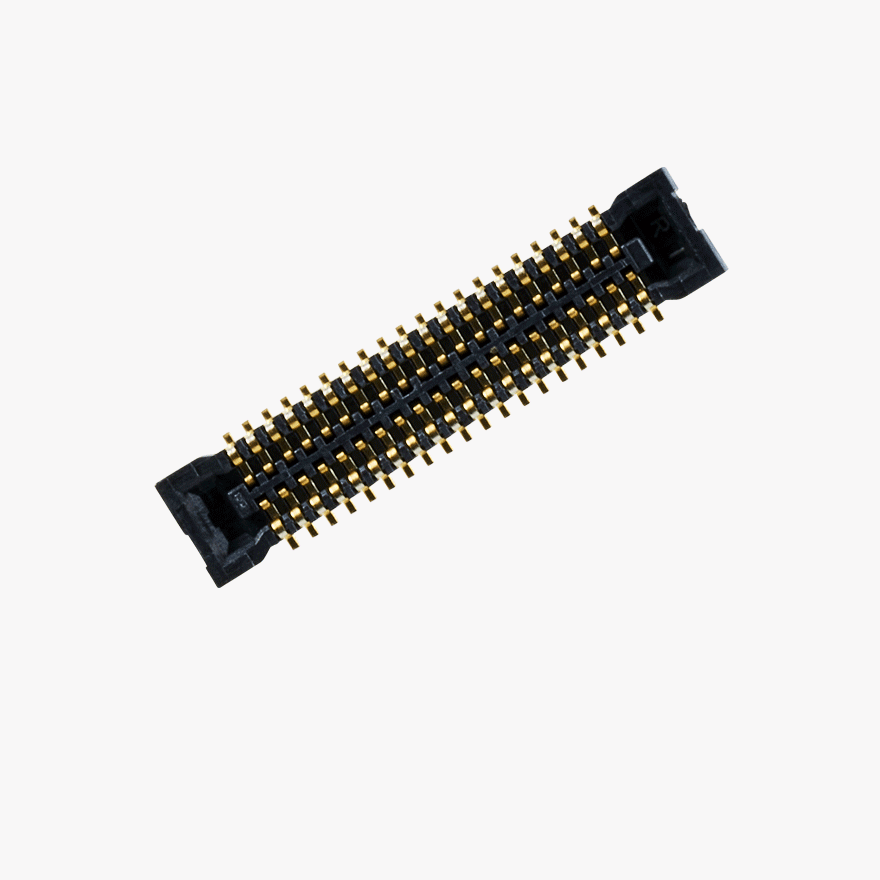

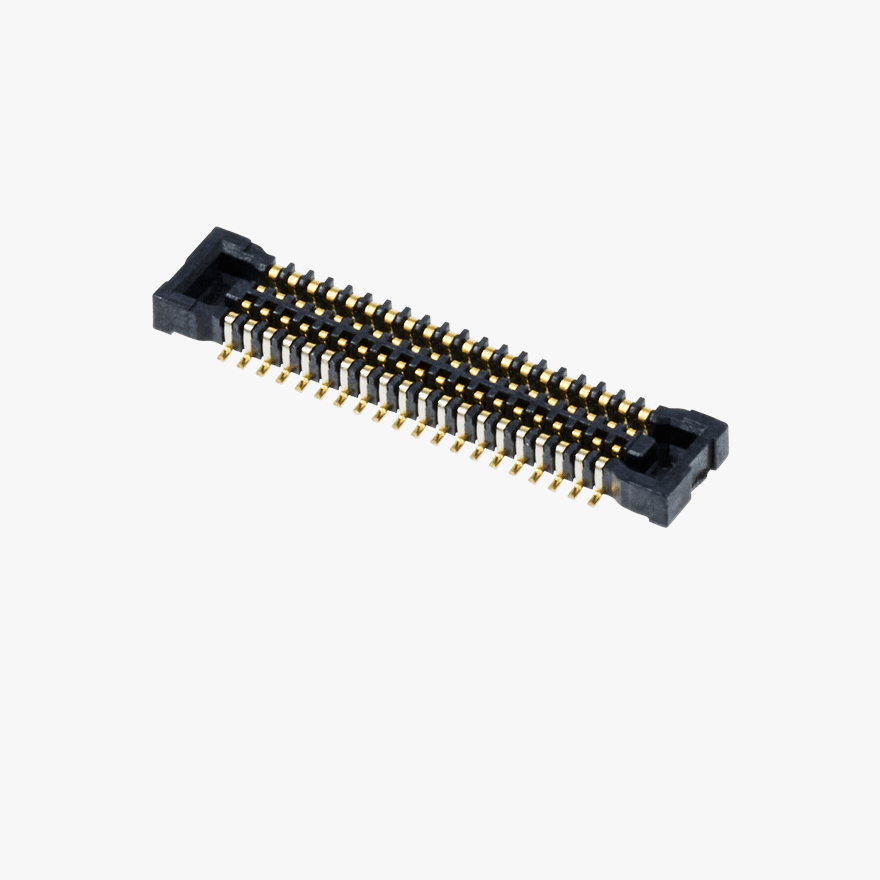

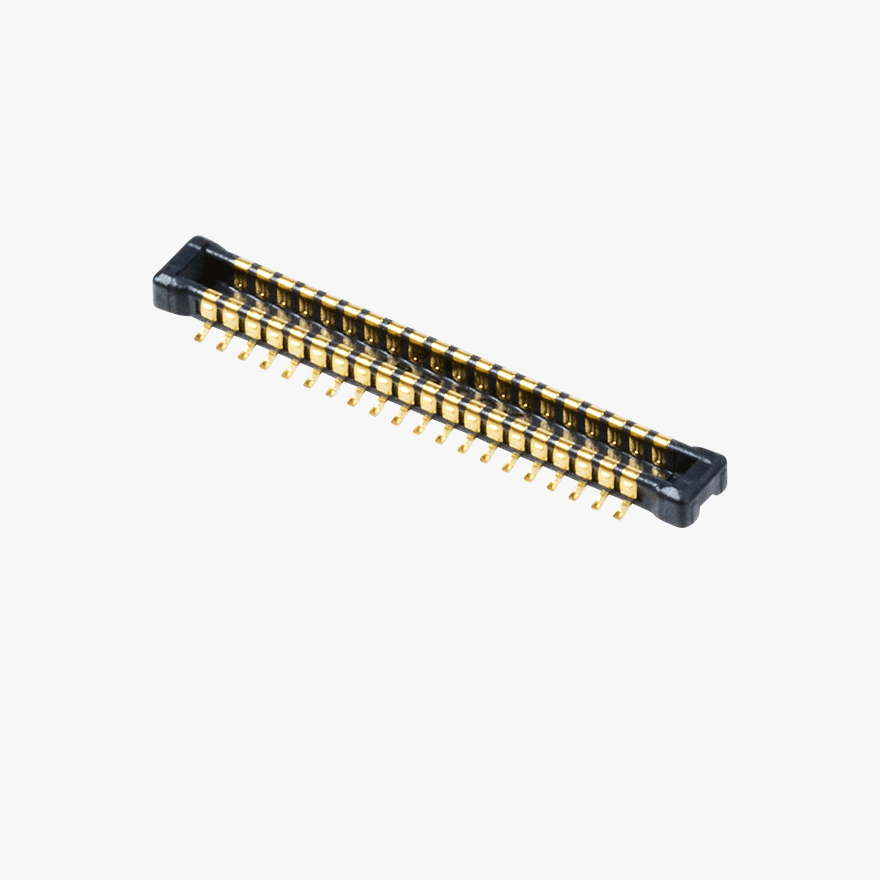

BF040-I40B-N09-C
THIN Series 0.40 Pitch 40Pin 0.9Height Female
PRODUCT DESCRIPTION
- For contact stability, Double Contact and Bellows Type Contact Structure
- 0.90mm slim stacking design for saving space
- ROHS Compliant Product
Technical Details
-
Pitch
(mm) 0.40 - Gender Female Connectors
- Connector Style
- Number of Positions 40
-
Current Rating
(A) 0.3A -
Contact Resistance
(MΩ (Max.)) 50mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 250MΩ [Min.] -
Dielectric Strength
(AC V) 250V AC(RMS) -
Temperature Range
(°C) -35℃ ~ 85℃
- Housing Material LCP
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 0.90 -
Connector Size width
(mm) 2.40 -
Connector Size length
(mm) 10.60 -
Mated Size height
(mm) 0.90 -
Mated Size width
(mm) 2.40 -
Mated Size length
(mm) 10.60
