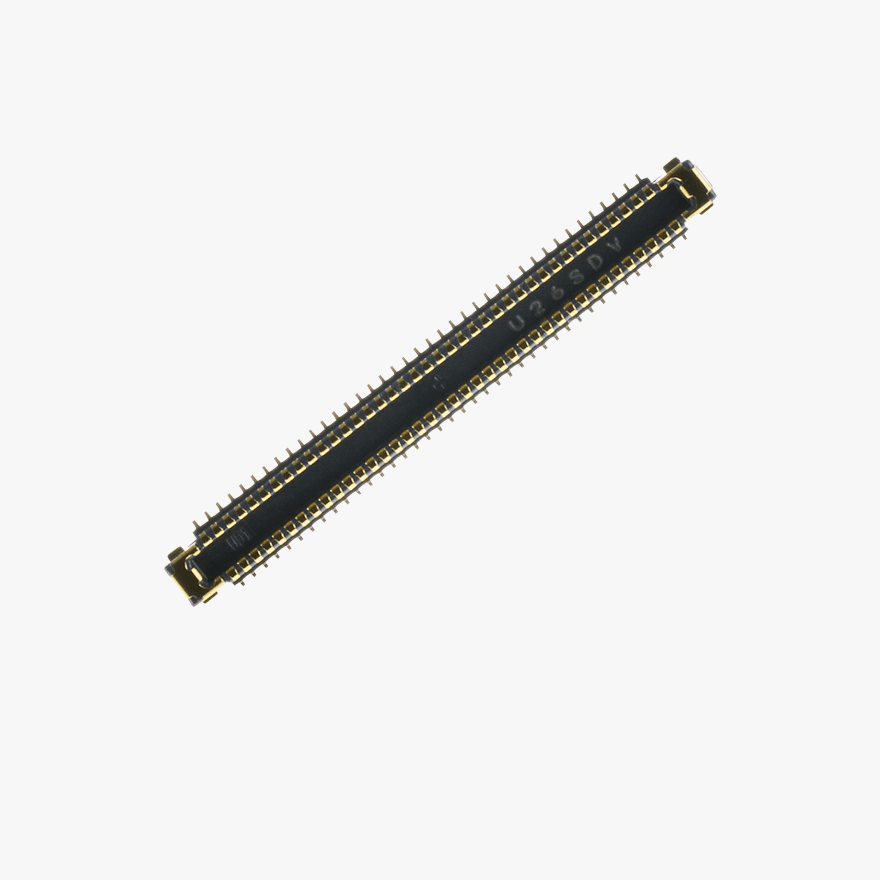

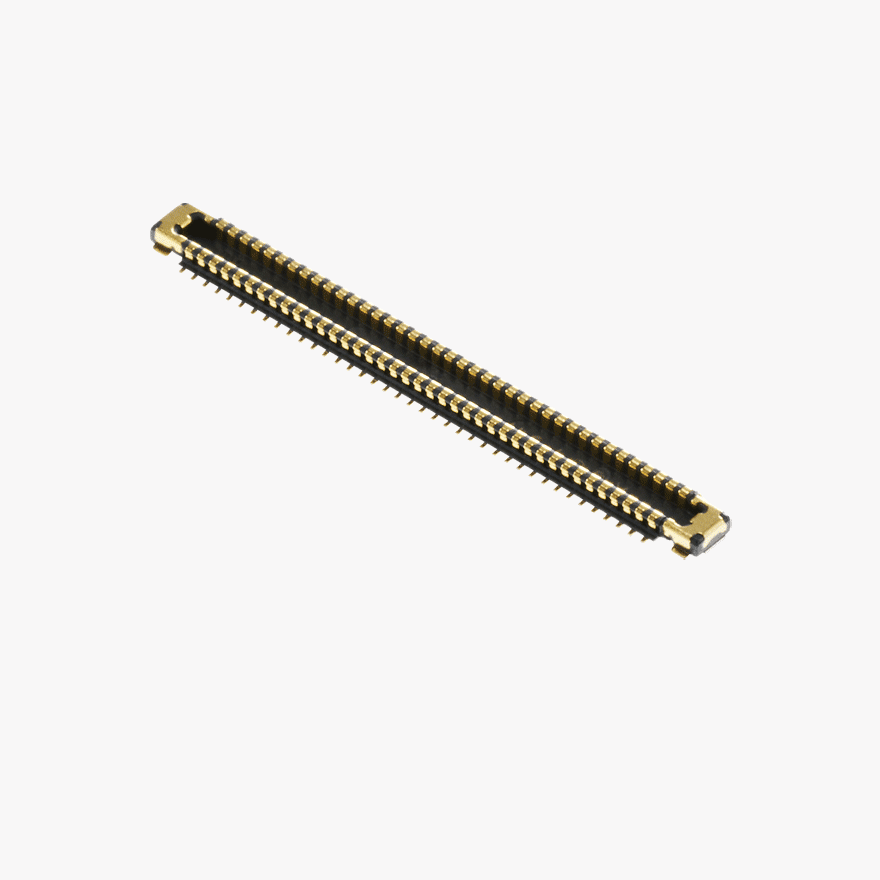

BM030-I78B-C06-C
BQ Series 0.3Pitch 78Pin 0.6Height Male
PRODUCT DESCRIPTION
- For contact stability, Double Contact and Bellows Type Contact Structure
- 0.3mm pitch, 0.6mm slim stacking design for saving space
- Functional Fitting Nail
1) Robust type (Mold Prevention of damage)
2) High Current - Female , Male – Terminal / Fitting Nail Full-Insert Structure
1) Prevention of Base damage and Reinforcement of strength
2) Improving product quality reliability
Technical Details
-
Pitch
(mm) 0.3 - Gender Male Connectors
- Connector Style
- Number of Positions 78
-
Current Rating
(A) Signal 0.3A/Pin & Power 5.0A/Pin -
Contact Resistance
(MΩ (Max.)) Signal 50mΩ [Max.] & Power 30mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 50MΩ [Min.] -
Dielectric Strength
(AC V) 250V AC(RMS) -
Temperature Range
(°C) -35℃ ~ 85℃
- Housing Material LCP
- Housing Colour BLACK
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 0.60 -
Connector Size width
(mm) 2.00 -
Connector Size length
(mm) 14.60 -
Mated Size height
(mm) 0.60 -
Mated Size width
(mm) 2.00 -
Mated Size length
(mm) 14.60
- FILE NAME EXTENSION UPDATED DATE
- FILE NAME EXTENSION UPDATED DATE
- FILE NAME EXTENSION UPDATED DATE
Mobile Connector / Board to Board Connectors

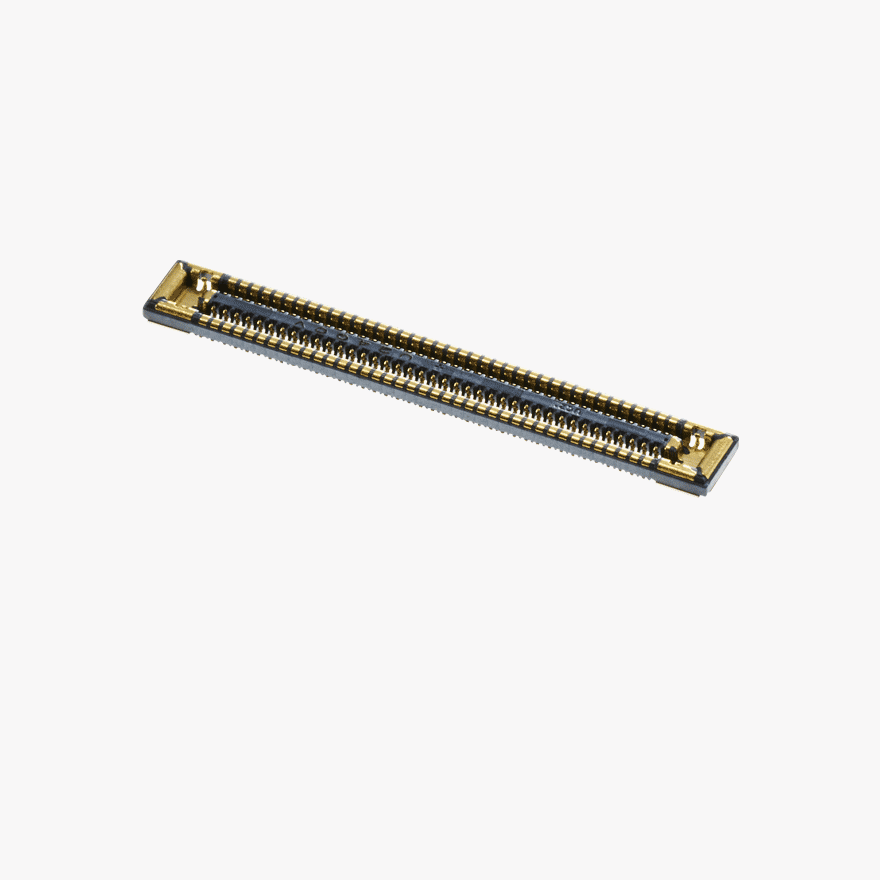

BQ Series 0.3Pitch 78Pin 0.6Height Female
BF030-I78B-C06-C
Mobile Connector / Board to Board Connectors

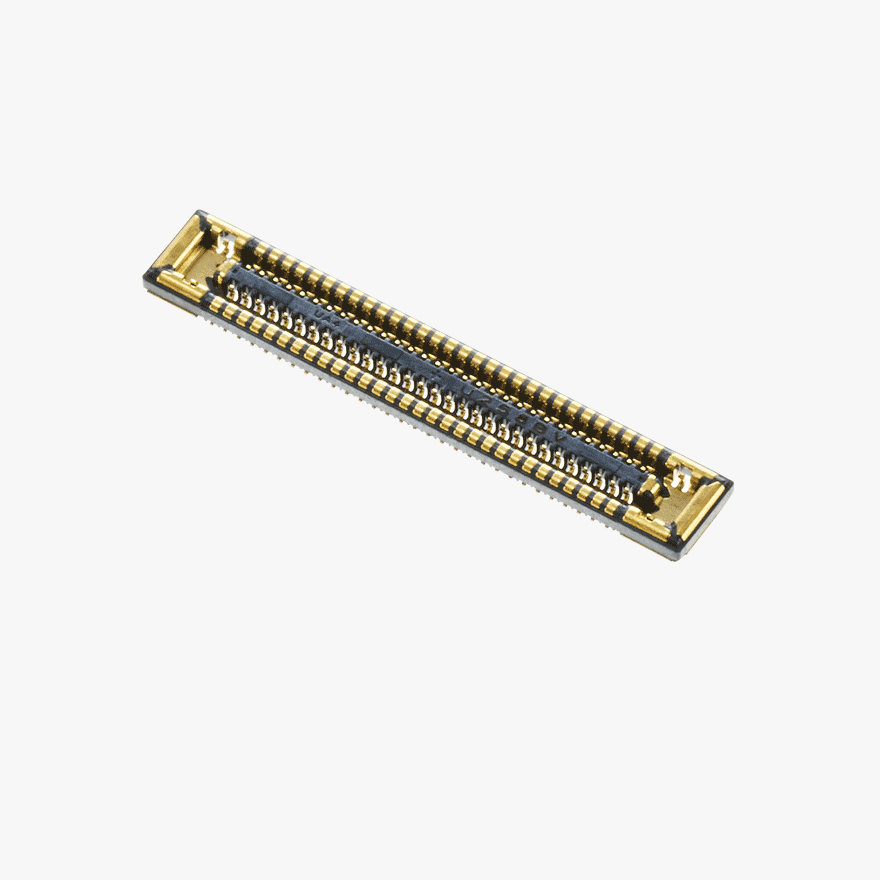

BQ Series 0.3Pitch 60Pin 0.6Height Female
BF030-I60B-C06-C
Mobile Connector / Board to Board Connectors

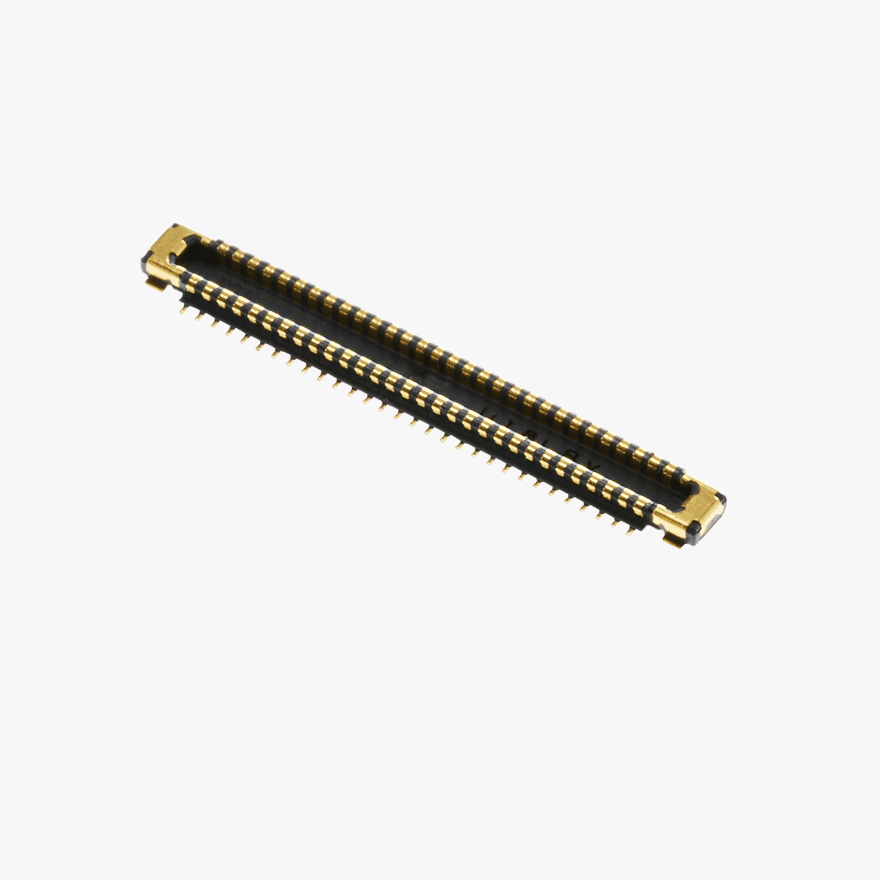

BQ Series 0.3Pitch 60Pin 0.6Height Male
