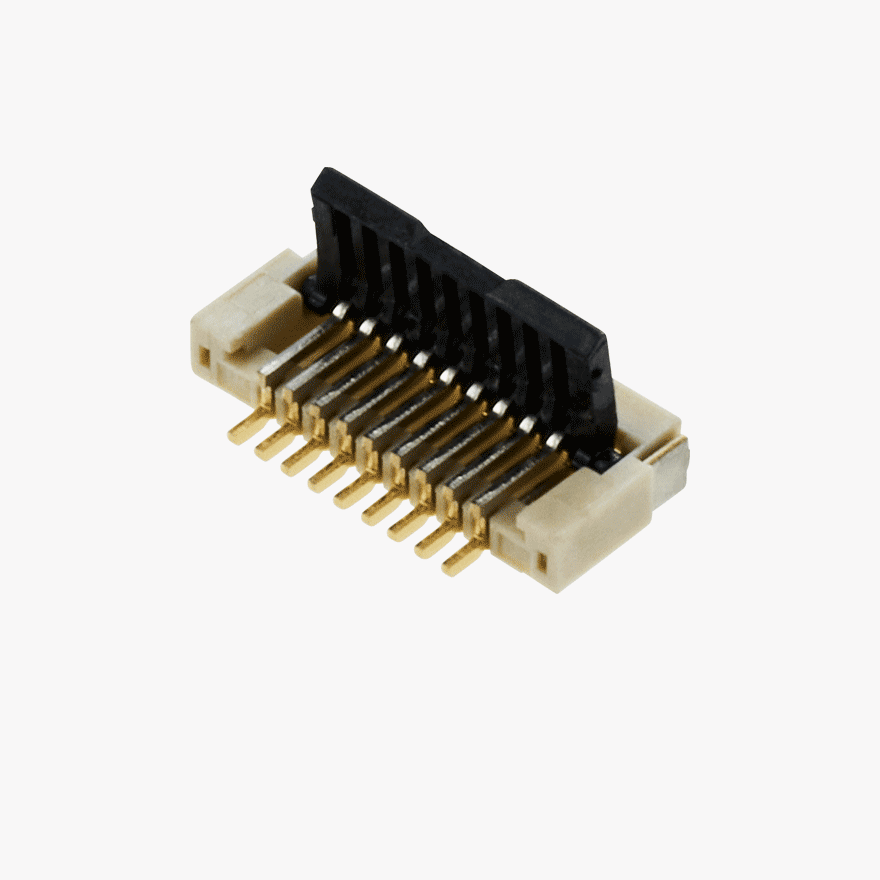

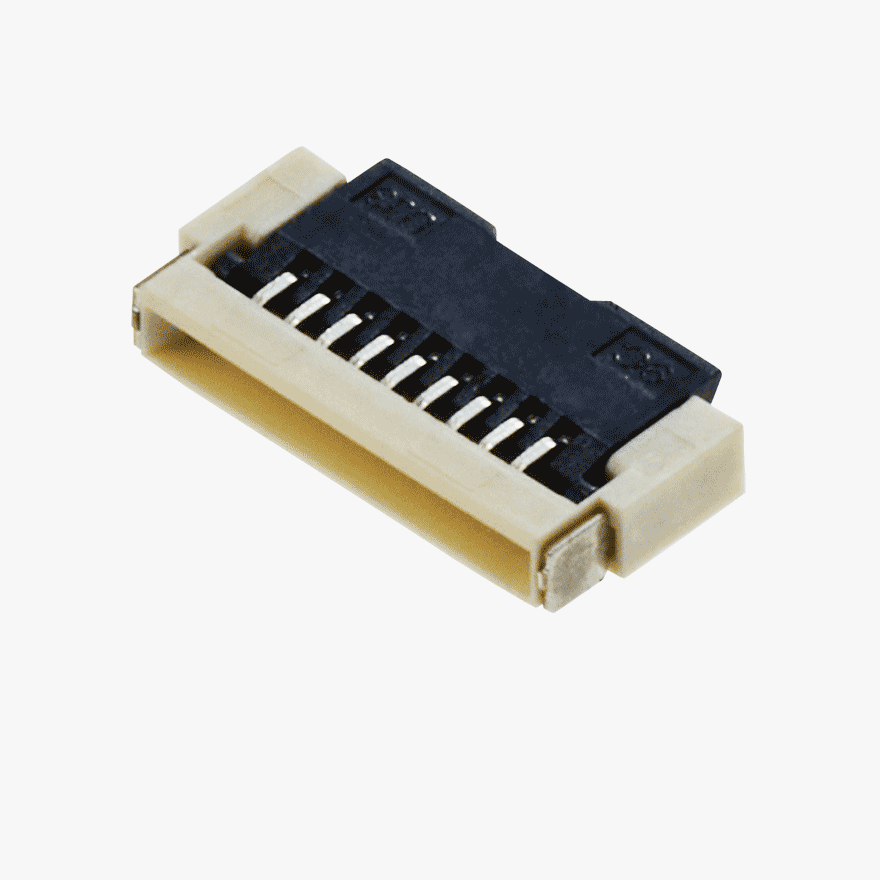

PF040-B09B-C09
0.4 B/F Series 0.4Pitch 9Pin 0.9Height Connector
PRODUCT DESCRIPTION
- 0.40mm Pitch, 0.90mm Height, compact design
- Easy to Insert FPC and operate Actuator Back–lock system
- High FPC Retention force with Actuator locking boss
- Applicable for FPC thickness is 0.2±0.03mm
Technical Details
-
Pitch
(mm) 0.40 - Gender Back Flip Connectors
- Connector Style
- Number of Positions
-
Current Rating
(A) 0.5A [Max.] -
Contact Resistance
(MΩ (Max.)) 100mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 500MΩ [Min.] -
Dielectric Strength
(AC V) AC 150V -
Temperature Range
(°C) -35℃ ~ 85℃
- Housing Material LCP
- Housing Colour Natural
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 0.90 -
Connector Size width
(mm) 3.00 -
Connector Size length
(mm) 5.40 -
Mated Size height
(mm) 0.90 -
Mated Size width
(mm) 3.00 -
Mated Size length
(mm) 5.40
