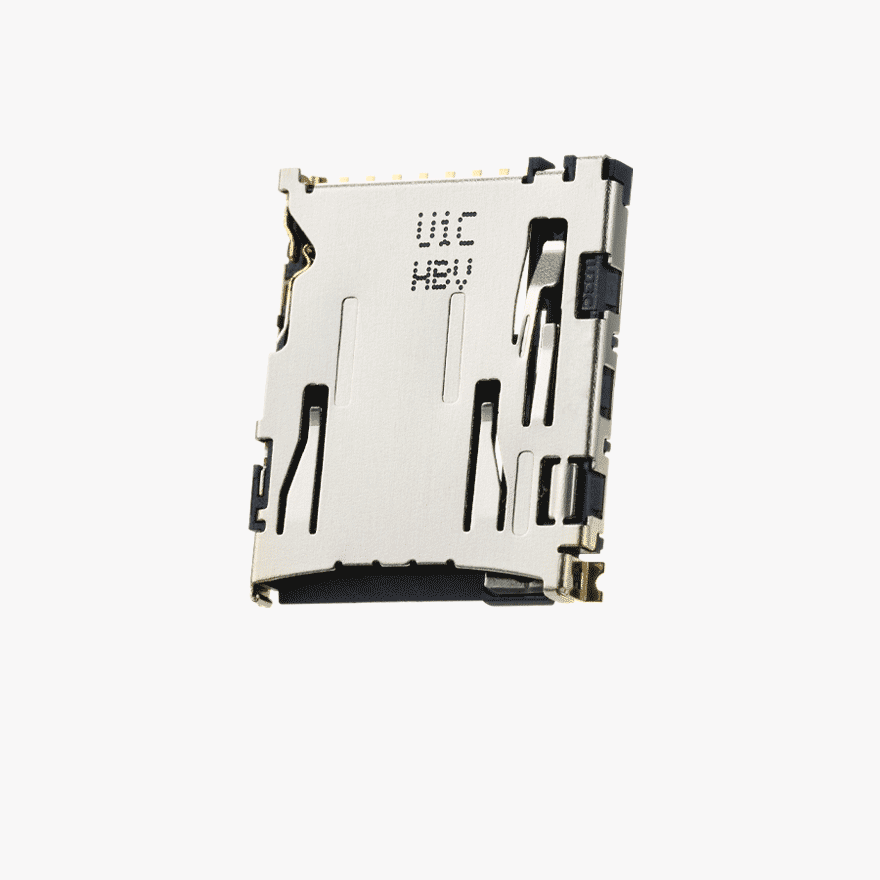

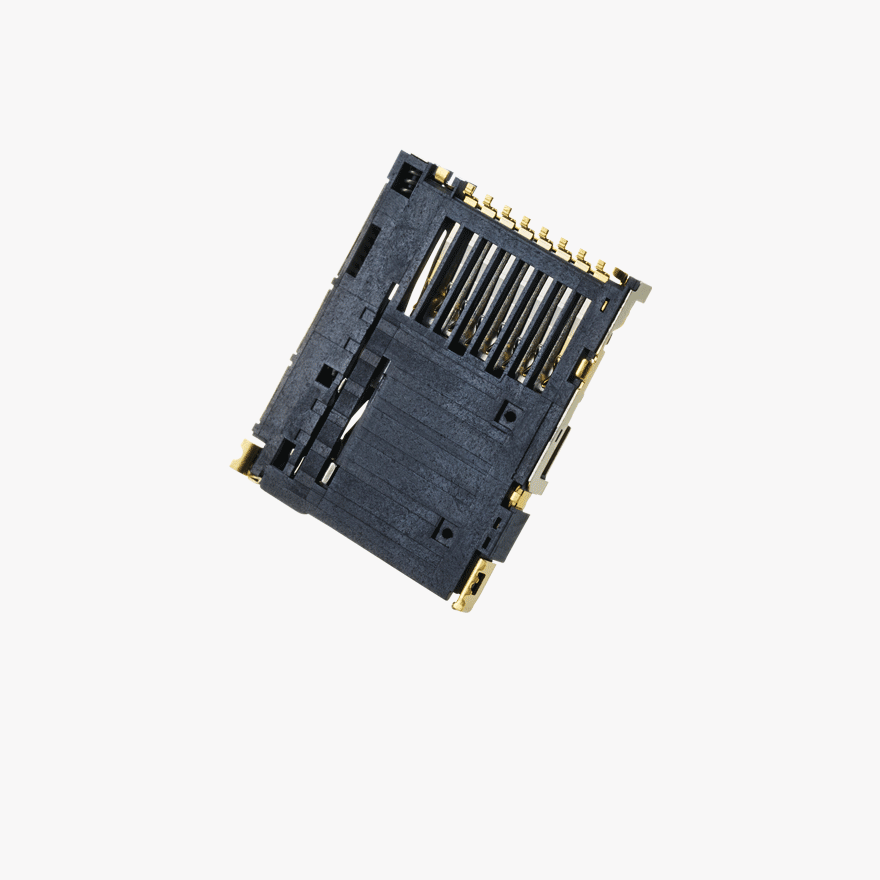

MS110-C10B-C16
MICRO SD CARD 1.68Height
PRODUCT DESCRIPTION
- micro-SD Card Socket
- Push In – Push Out (Simple Installation)
- Application structure Card Detect Switch
Technical Details
-
Pitch
(mm) 1.10 - Gender ETC
- Connector Style
- Number of Positions 8
-
Current Rating
(A) 0.5A/Pin -
Contact Resistance
(MΩ (Max.)) 60mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 1,000MΩ [Min.] -
Dielectric Strength
(AC V) AC 500V -
Temperature Range
(°C) -25℃ ~ 85℃
- Housing Material LCP
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 1.68 -
Connector Size width
(mm) 15.95 -
Connector Size length
(mm) 13.85 -
Mated Size height
(mm) 1.68 -
Mated Size width
(mm) 15.95 -
Mated Size length
(mm) 13.85
