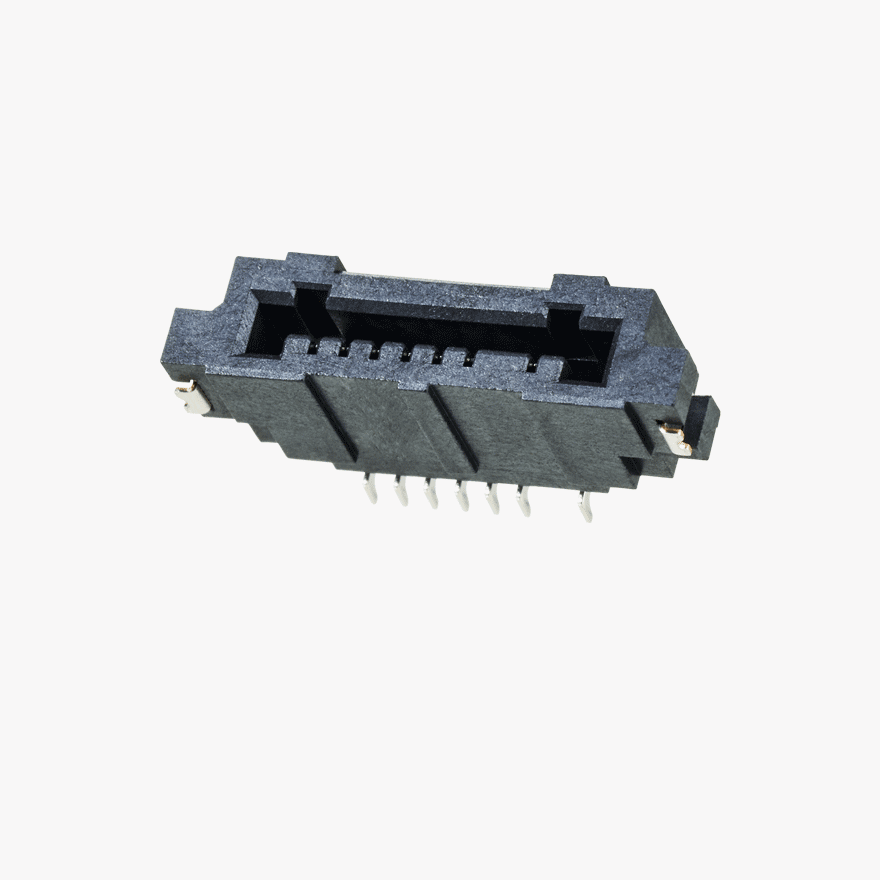

IS100-L08T-C46-B
LED POWER Series 1.0Pitch 8Pin 4.6Height FFC Connector Receptacle Black SMD
PRODUCT DESCRIPTION
- 1.0mm Pitch, 6.2mm Height, Horizontal type connector
- Applicable for FFC thickness is 0.40±0.03mm
Technical Details
-
Pitch
(mm) 1.00 - Gender Female Connectors
- Connector Style Horizontal
- Number of Positions 8
-
Current Rating
(A) AC, DC 1.0Amp -
Contact Resistance
(MΩ (Max.)) 50mΩ Max. -
Insulation Resistance
(MΩ (Min.)) 500MΩ Min. -
Dielectric Strength
(AC V) AC , DC 150V -
Temperature Range
(°C) 40℃ to +85 ℃
- Housing Material LCP
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 4.35 -
Connector Size width
(mm) 6.30 -
Connector Size length
(mm) 16.35 -
Mated Size height
(mm) 4.35 -
Mated Size width
(mm) 6.30 -
Mated Size length
(mm) 16.35
- FILE NAME EXTENSION UPDATED DATE
- FILE NAME EXTENSION UPDATED DATE
- FILE NAME EXTENSION UPDATED DATE
Display Connector / LED POWER

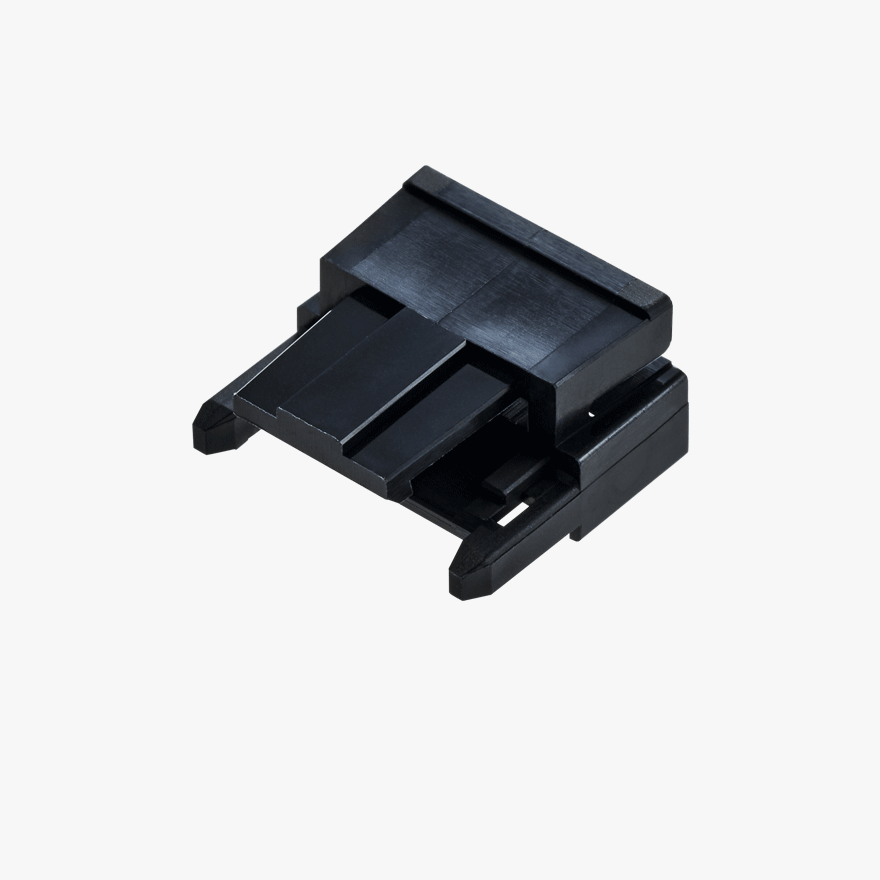

LED POWER Series 1.0Pitch 8Pin 4.6Height FFC Connector Housing Black
