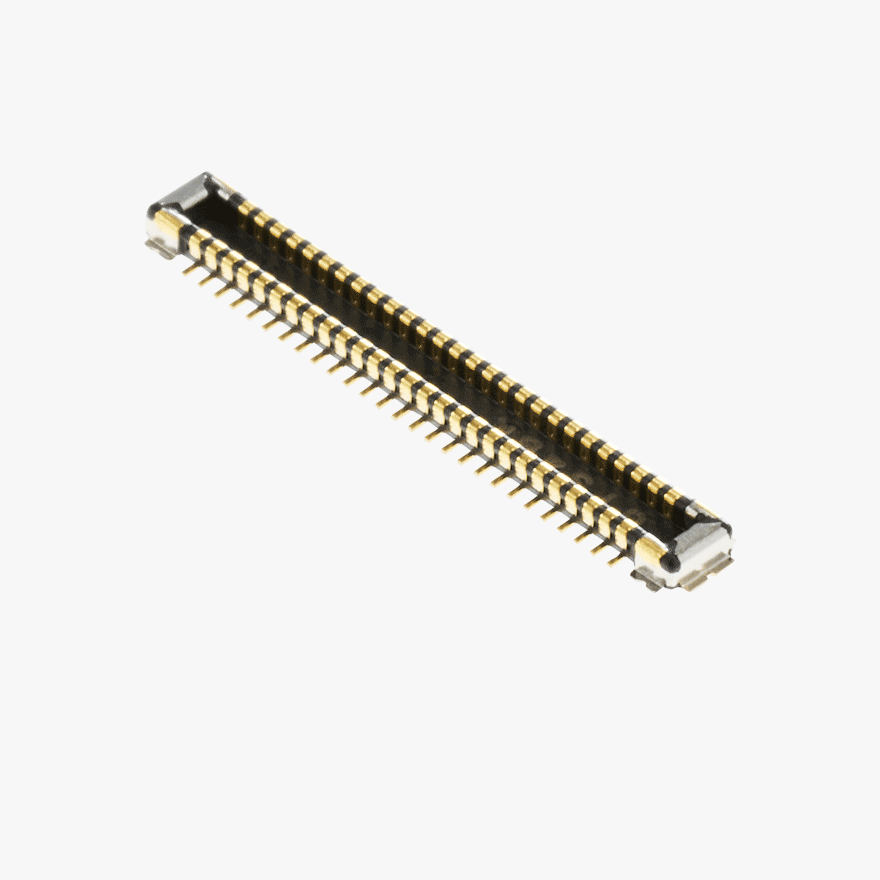

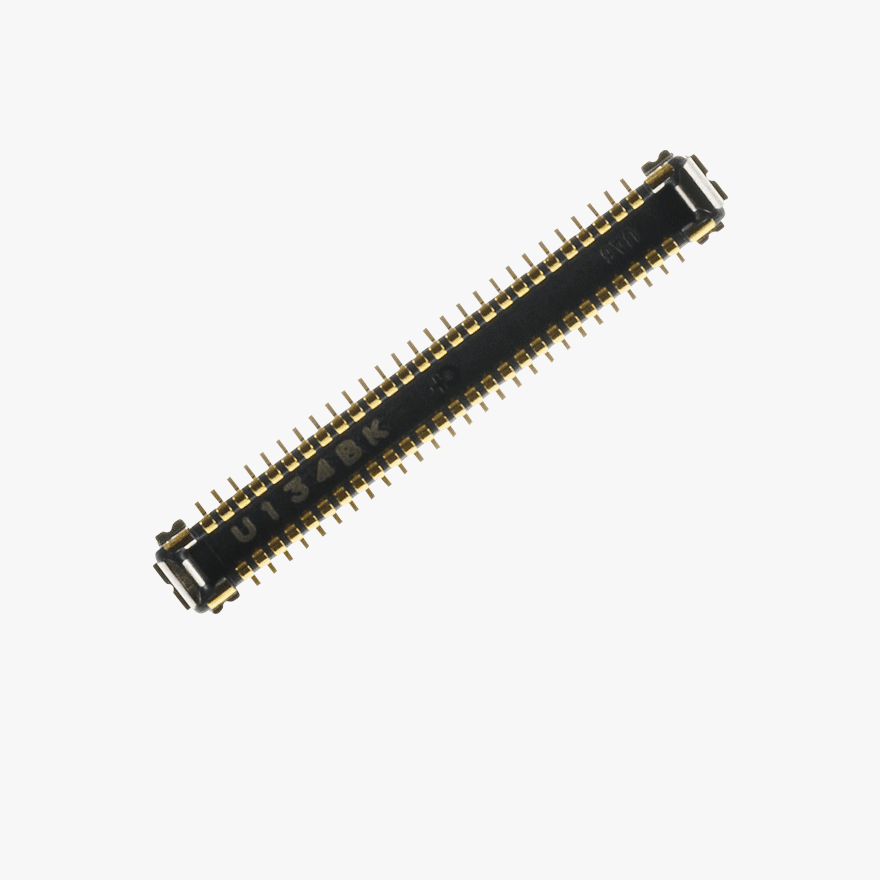

BM035-I54B-C-08-G
BM Series 0.35Pitch 54Pin 0.8Height Male
PRODUCT DESCRIPTION
- For contact stability, Double Contact and Bellows Type Contact Structure
- Functional Fitting Nail
1) Robust type (Mold Prevention of damage)
2) High Current - Female , Male – Terminal / Fitting Nail Full-Insert Structure
1) Mold Prevention of damage and Reinforcement of strength
2) Improving product quality reliability.
Technical Details
-
Pitch
(mm) 0.35 - Gender Male Connectors
- Connector Style
- Number of Positions 54
-
Current Rating
(A) Signal 0.3A/Pin & Power 5.0A/Pin -
Contact Resistance
(MΩ (Max.)) Signal 60mΩ [Max.] & Power 30mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 1,000MΩ [Min.] -
Dielectric Strength
(AC V) 250V AC(RMS) -
Temperature Range
(°C) -40℃ ~ 85℃
- Housing Material LCP
- Housing Colour BLACK
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 0.80 -
Connector Size width
(mm) 2.20 -
Connector Size length
(mm) 12.50 -
Mated Size height
(mm) 0.80 -
Mated Size width
(mm) 2.20 -
Mated Size length
(mm) 12.50
- FILE NAME EXTENSION UPDATED DATE
- FILE NAME EXTENSION UPDATED DATE
- FILE NAME EXTENSION UPDATED DATE
0.35 /

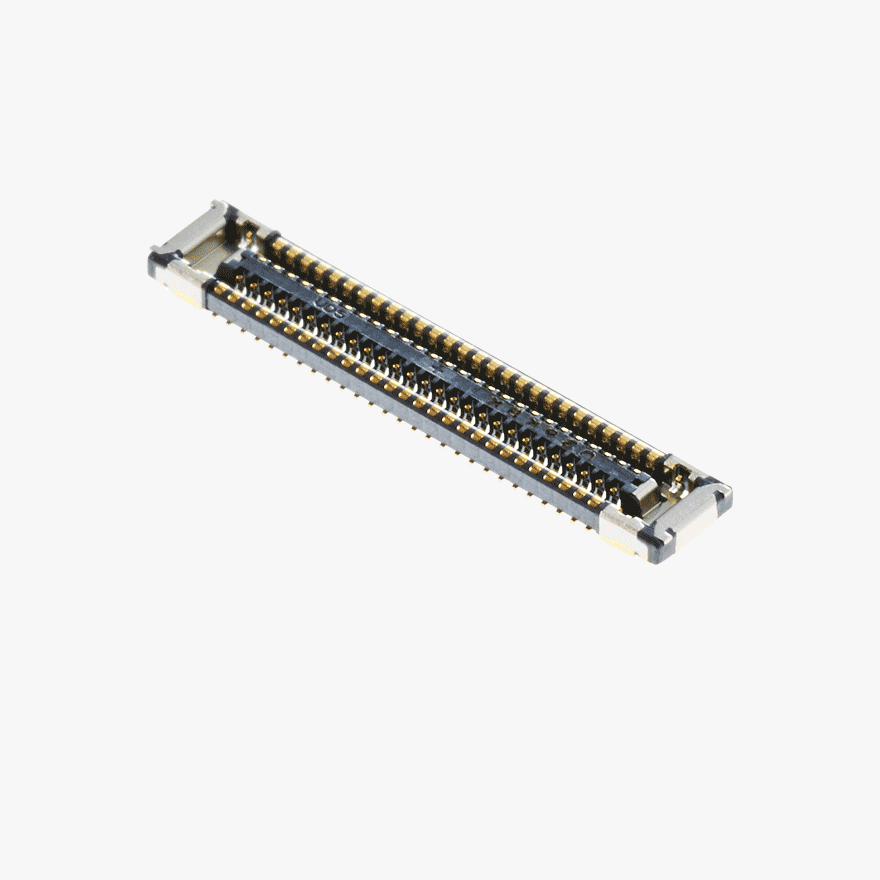

BM Series 0.35Pitch 54Pin 0.8Height Female
