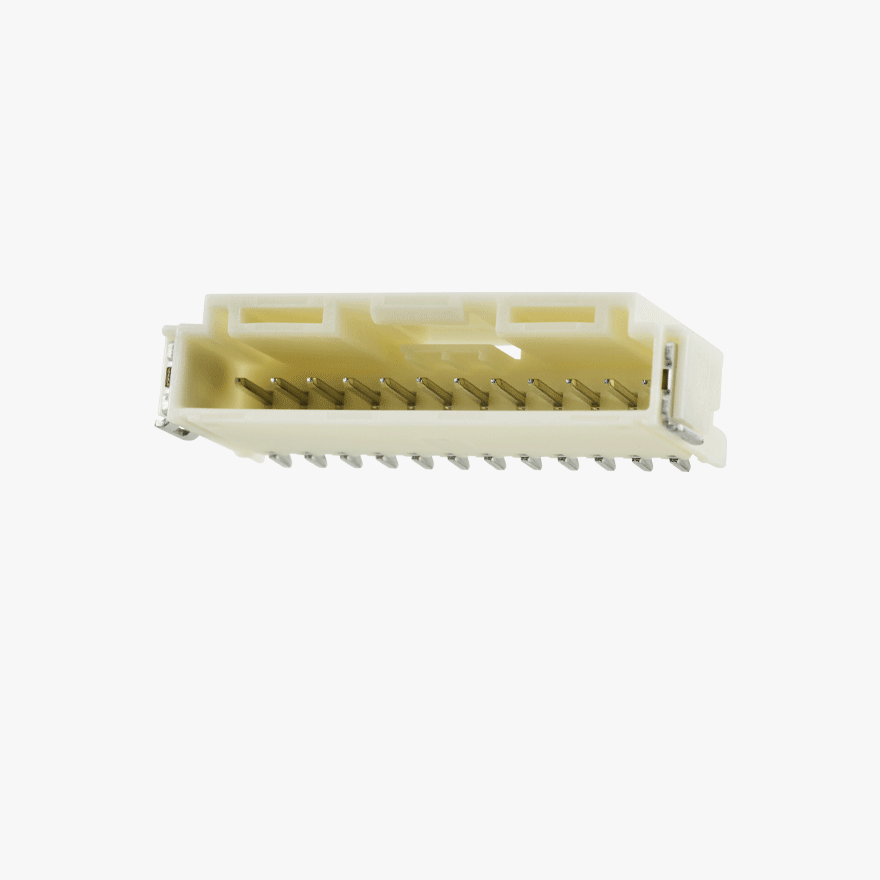

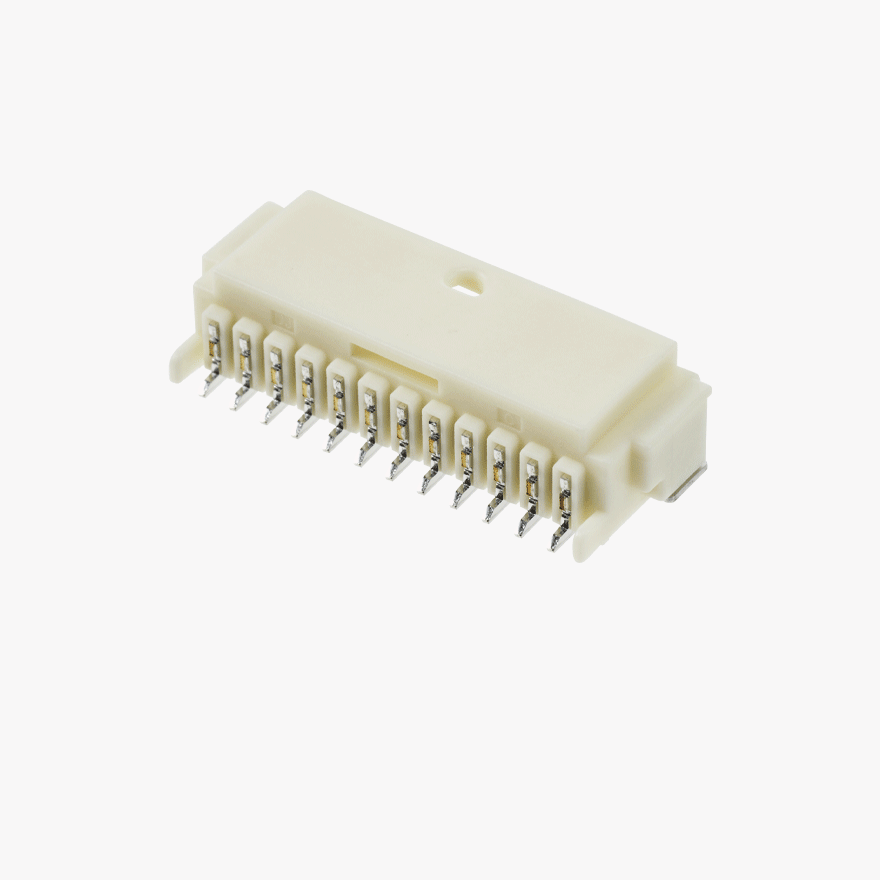

KH1800112-10
020 Small Blistering Less 12Pin Male Connector Horizontal Natural SMT type
PRODUCT DESCRIPTION
- The blade width of male Terminal for this Connector is 0.020 inch (0.5mm)
- The terminal pitch of this connector is 2.0mm
- This product is smaller than 020 Series and excellent space utilization
- Reliability Test Specifications : ES91500-03, GMW3191
Technical Details
-
Pitch
(mm) 2.0 - Gender Male Connectors
- Connector Style Horizontal
- Number of Positions 12
-
Current Rating
(A) 3 -
Contact Resistance
(MΩ (Max.)) 30 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 1000 -
Temperature Range
(°C) -40 ~ +125 -
Reliability Test
Specifications ES91500-03, GMW3191
- Housing Material PA9T-GF30
- Housing Colour Natural
- Terminal Material
-
Housing Material UL
Rating HB
-
Connector Size height
(mm) 6.80 -
Connector Size width
(mm) 28.20 -
Connector Size length
(mm) 10.90 -
Mated Size height
(mm) 7.00 -
Mated Size width
(mm) 28.20 -
Mated Size length
(mm) 12.60
- FILE NAME EXTENSION UPDATED DATE
Automotive Connector / Board to Wire Connectors

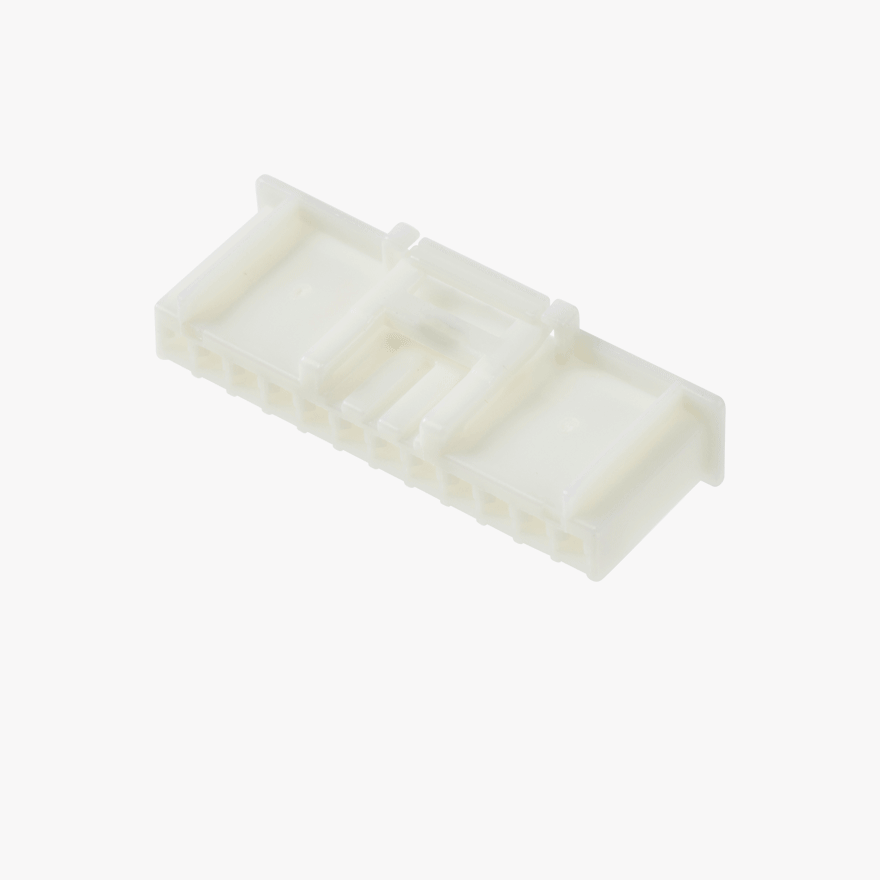

020 Small Blistering Less 12Pin Female Connector Natural
