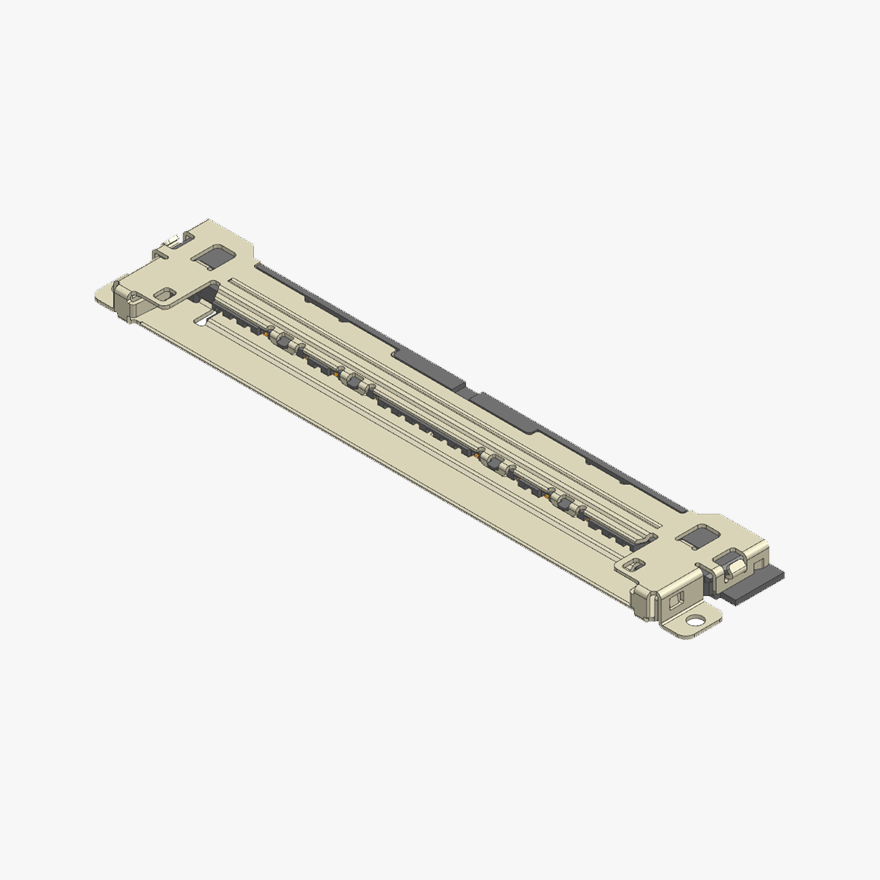

IS050-L30B-C10
USER 30P HDR ASS[ON/I]
PRODUCT DESCRIPTION
- 0.5mm pitch, 1.0mm slim stacking design for saving space
- Horizontal type micro-coaxial connector
- Micro-Coaxial Cable (AWG) : #32, #36, #38, #40, #42, #44
- High data rate transfer
- Anti-reverse mating design
Technical Details
-
Pitch
(mm) 0.50 - Gender Female Connectors
- Connector Style
- Number of Positions
-
Current Rating
(A) AWG #32, #34 1.0A #36 0.8A #40 0.3A #42 0.24A #44 0.1A -
Contact Resistance
(MΩ (Max.)) Contact 60mΩ [Max.], Shell 50mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 100MΩ [Min.] -
Dielectric Strength
(AC V) AC 500V -
Temperature Range
(°C) '-35℃ ~ 85℃
- Housing Material LCP
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 1.00 -
Connector Size width
(mm) 3.95 -
Connector Size length
(mm) 21.25 -
Mated Size height
(mm) 1.00 -
Mated Size width
(mm) 3.95 -
Mated Size length
(mm) 21.25
