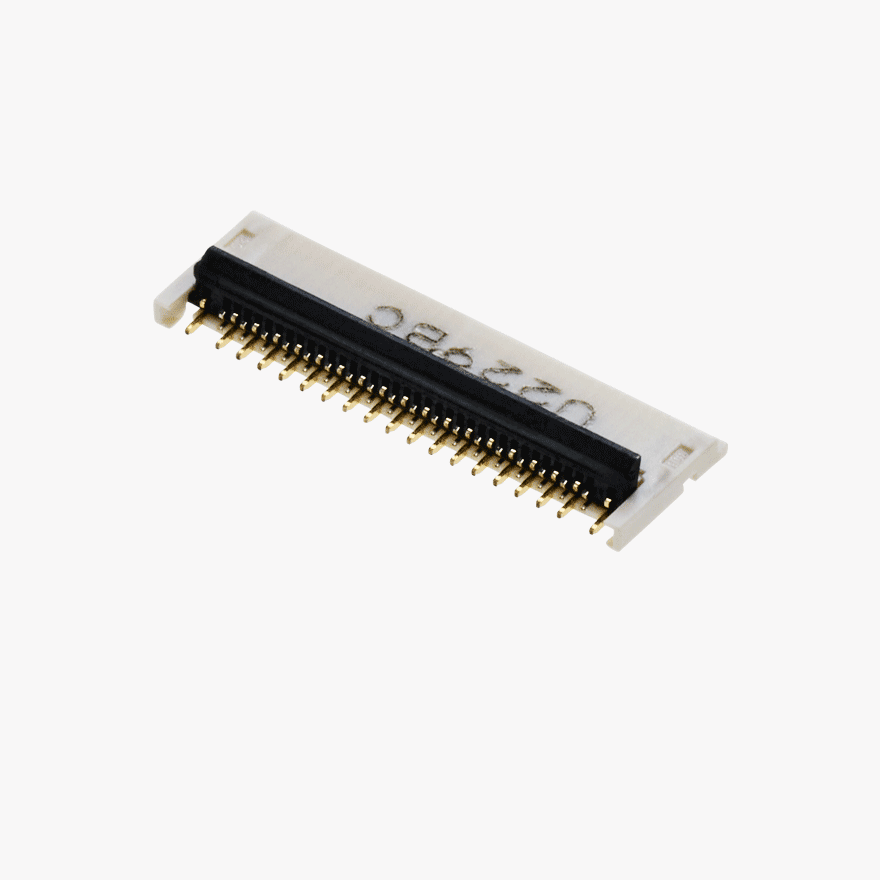

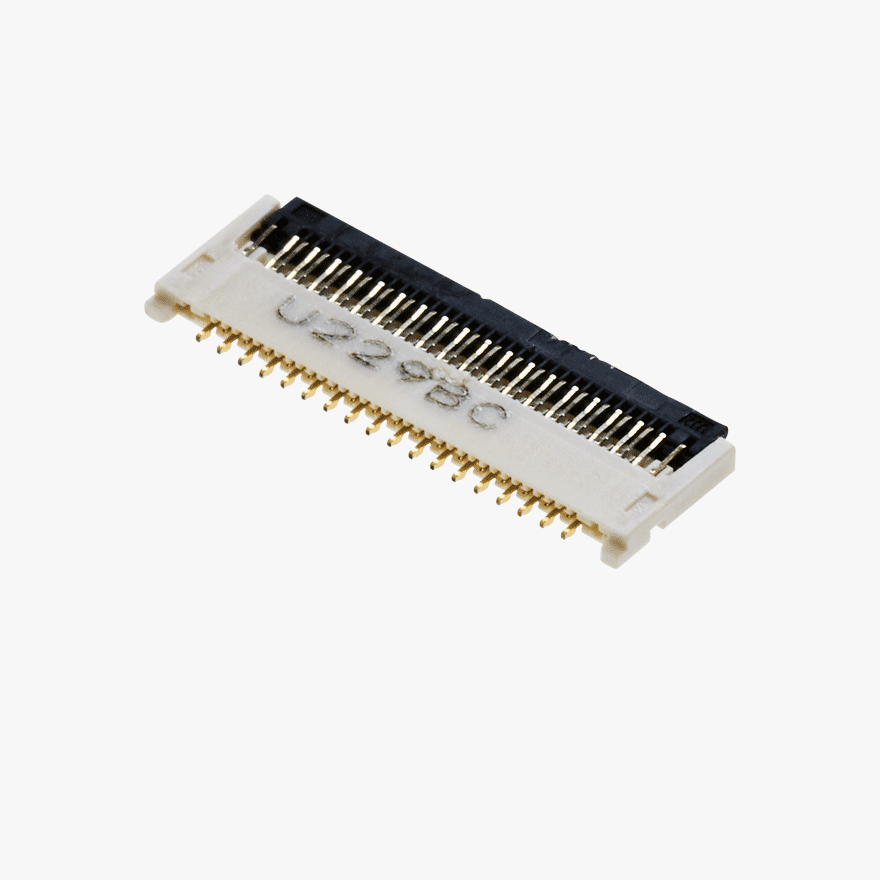

PF025-B35B-N07
Namu 0.25Pitch 35Pin 0.7Height Connector
PRODUCT DESCRIPTION
- 0.25mm Pitch, 0.66mm Height, Ultra narrow and compact design
- Easy to Insert FPC and operate Actuator Back–lock system
- High FPC Retention force with both Locking Terminal
- Applicable for FPC thickness is 0.12±0.015mm
Technical Details
-
Pitch
(mm) 0.25 - Gender Back Flip Connectors
- Connector Style
- Number of Positions
-
Current Rating
(A) Signal 0.2A[Max] -
Contact Resistance
(MΩ (Max.)) 80mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 50MΩ [Min.] -
Dielectric Strength
(AC V) AC 200V -
Temperature Range
(°C) -35℃ ~ 85℃
- Housing Material LCP
- Housing Colour Natural
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 0.66 -
Connector Size width
(mm) 3.80 -
Connector Size length
(mm) 11.00 -
Mated Size height
(mm) 0.66 -
Mated Size width
(mm) 3.80 -
Mated Size length
(mm) 11.00
