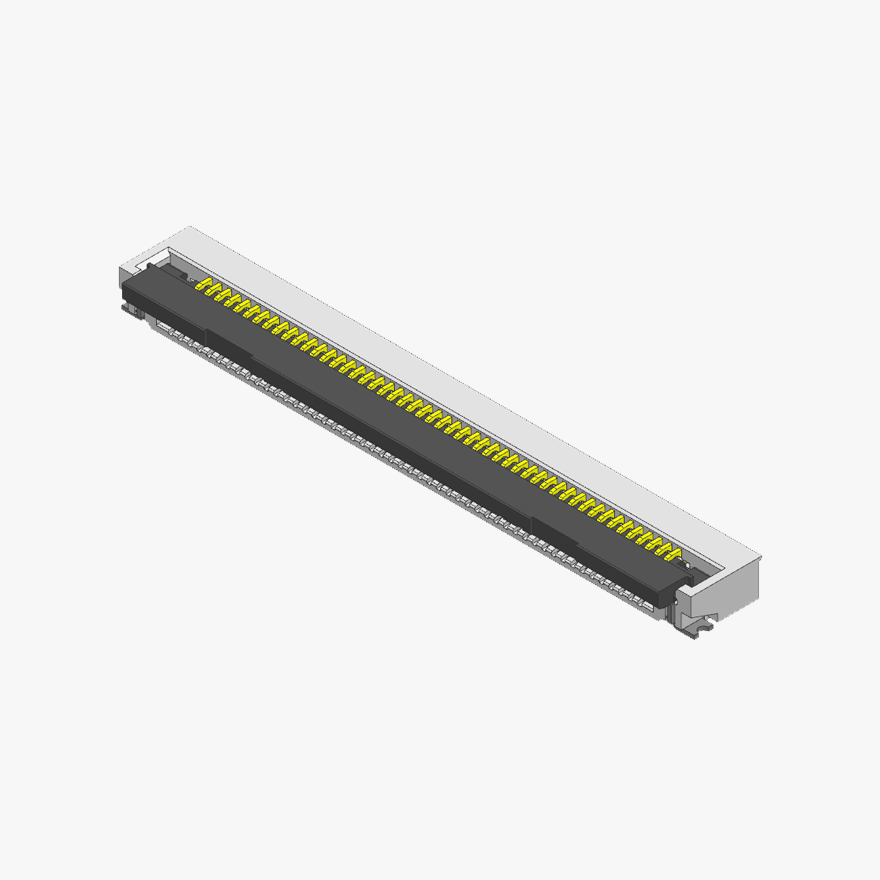

PF050-L50B-C21-A
FPC 0.5 Pitch 50Pin 2.1Height Narrow Type
PRODUCT DESCRIPTION
- 0.50mm Pitch, 2.1mm Height, narrow and compact design
- Easy to Insert FPC and operate Actuator Front–lock system
- Applicable for FFC thickness is 0.30±0.03mm
Technical Details
-
Pitch
(mm) 0.50 - Gender Front Flip Connectors
- Connector Style
- Number of Positions 50
-
Current Rating
(A) 0.5A [Max.] -
Contact Resistance
(MΩ (Max.)) 50mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 500MΩ [Min.] -
Dielectric Strength
(AC V) AC 250V -
Temperature Range
(°C) -40℃ ~ 85℃
- Housing Material LCP
- Housing Colour Natural
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 2.10 -
Connector Size width
(mm) 5.00 -
Connector Size length
(mm) 29.88 -
Mated Size height
(mm) 2.10 -
Mated Size width
(mm) 5.00 -
Mated Size length
(mm) 29.88
