KH2000088-20
025 II 16Pin female Connector Black
PRODUCT DESCRIPTION
- The blade width of male terminal for this connector is 0.025 inch (0.64mm)
- The terminal pitch of this connector is 2.2mm
- Applied TPA type of male/female connector : Pre-assembled TPA
- This is the standard product about the small connector for 0.025 inch (0.64mm)
- Reliability Test Specification : ES91500-00, GMW3191
Technical Details
-
Pitch
(mm) 2.2 - Gender Female Connectors
- Connector Style
- Number of Positions 16
-
Current Rating
(A) 5 -
Contact Resistance
(MΩ (Max.)) 10 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 1000 -
Temperature Range
(°C) -40 ~ +125 -
Reliability Test
Specifications ES91500-00, GMW3191
- Housing Material PBT-GF10
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating HB
-
Connector Size height
(mm) 15.20 -
Connector Size width
(mm) 20.10 -
Connector Size length
(mm) 18.10 -
Mated Size height
(mm) 16.30 -
Mated Size width
(mm) 26.30 -
Mated Size length
(mm) 23.60
- FILE NAME EXTENSION UPDATED DATE
Automotive Connector / Wire to Wire Connectors
025 II Female Tin Terminal
KH2000016-21
Automotive Connector / Wire to Wire Connectors

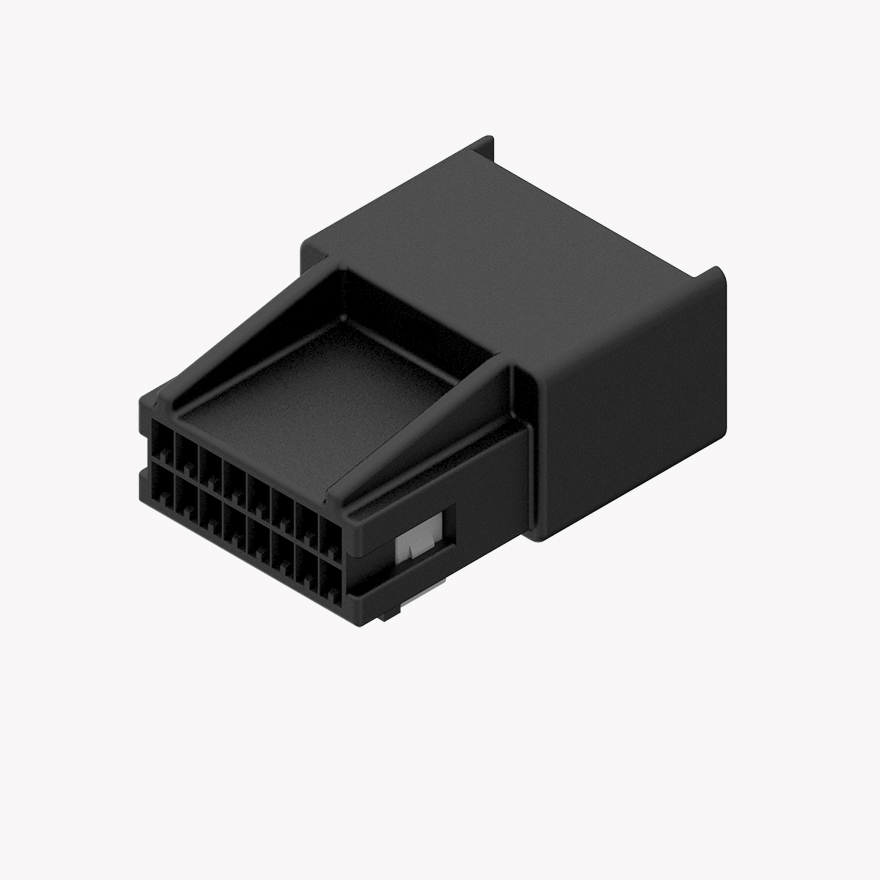

025 II 16Pin Male Connector Black Wire to Wire type
