KH1600063-20
020 Sealed 4Pin Male Connector Black Wire to Wire type
PRODUCT DESCRIPTION
- The applied blade size is 0.5mm(Width)
- Quality enhancement in waterproof aspect
- Robust designed water resistant feature
- This product is satisfied with the IP69K for waterproof performance
- Reliability Test Specification : SES E 060-07
Technical Details
-
Pitch
(mm) - Gender Male Connectors
- Connector Style
- Number of Positions 4
-
Current Rating
(A) 3 -
Contact Resistance
(MΩ (Max.)) 30 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 1000 -
Temperature Range
(°C) -40 ~ +125
- Housing Material PA66-GF30
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating HB
-
Connector Size height
(mm) 11.05 -
Connector Size width
(mm) 11.80 -
Connector Size length
(mm) 23.50 -
Mated Size height
(mm) 11.15 -
Mated Size width
(mm) 11.80 -
Mated Size length
(mm) 27.90
- FILE NAME EXTENSION UPDATED DATE
- FILE NAME EXTENSION UPDATED DATE
Automotive Connector / Wire to Wire Connectors

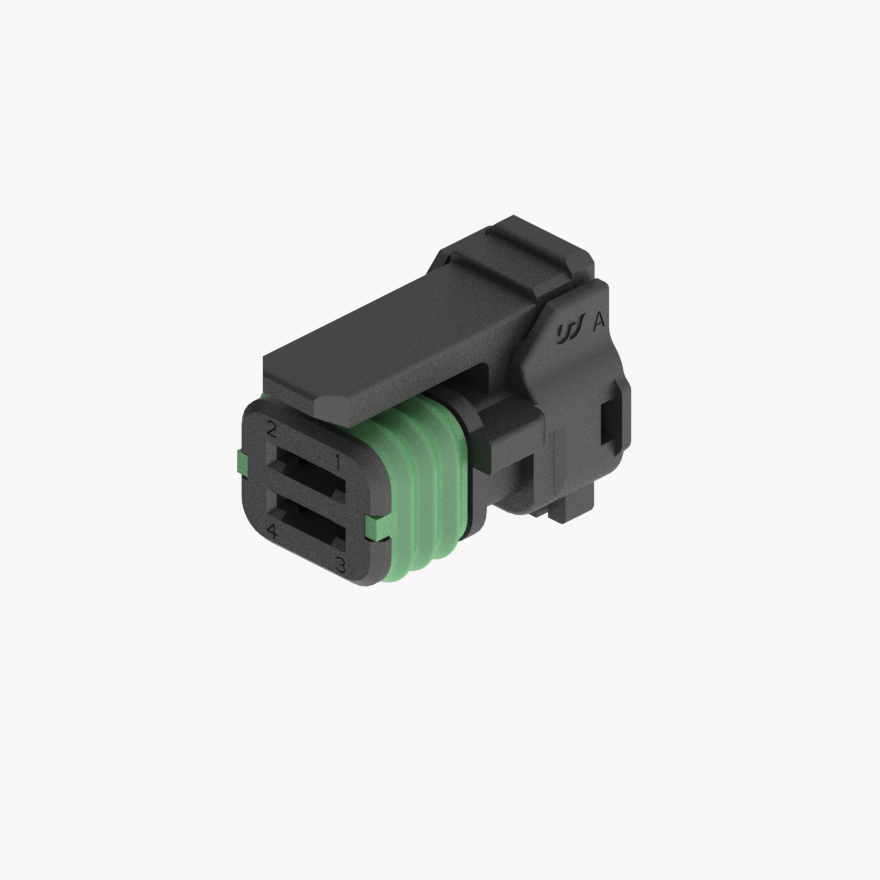

020 Sealed 4Pin Female Connector Black Wire to Wire type
KH1600061-20
Automotive Connector / Wire to Wire Connectors

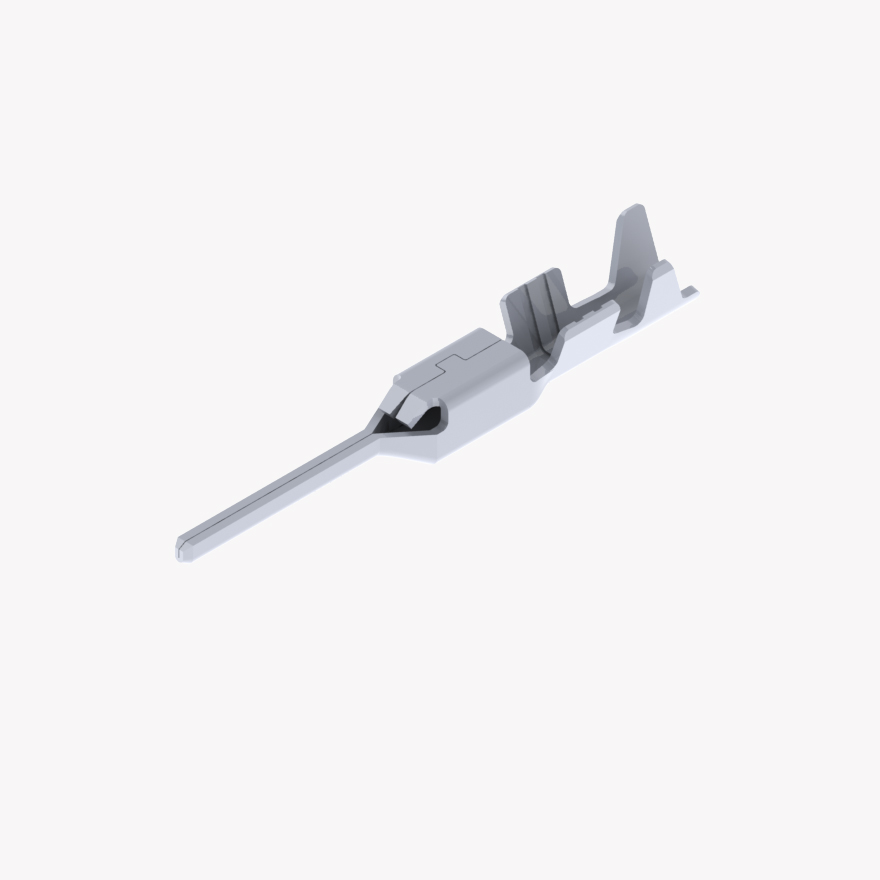

020 Sealed Male Terminal
