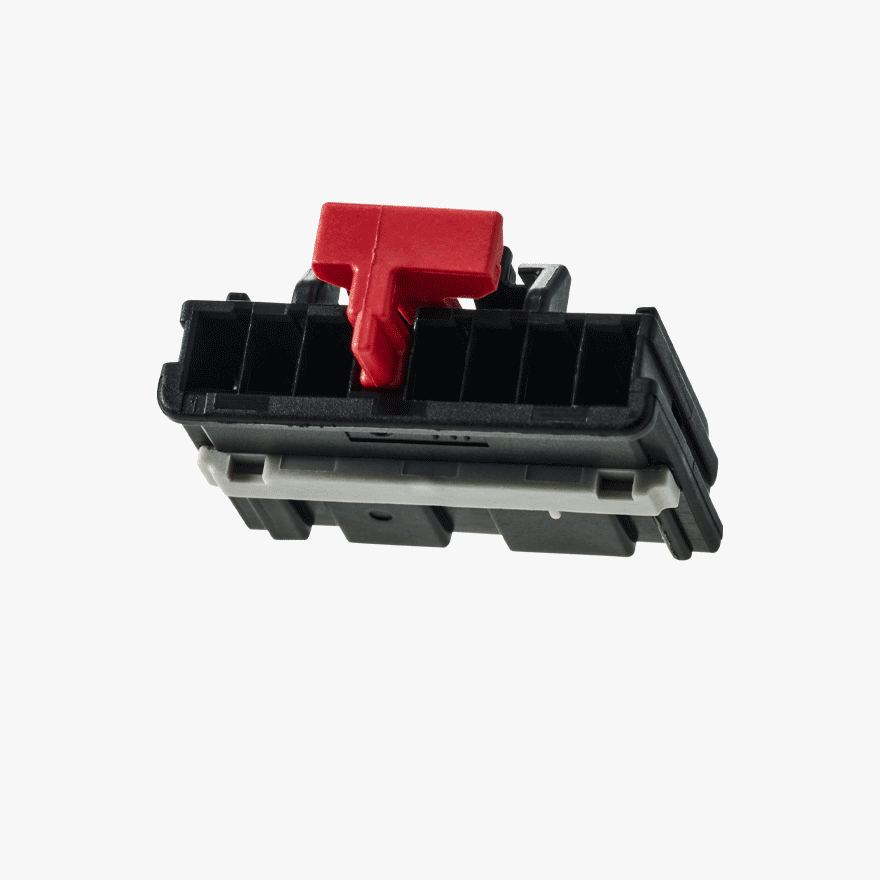

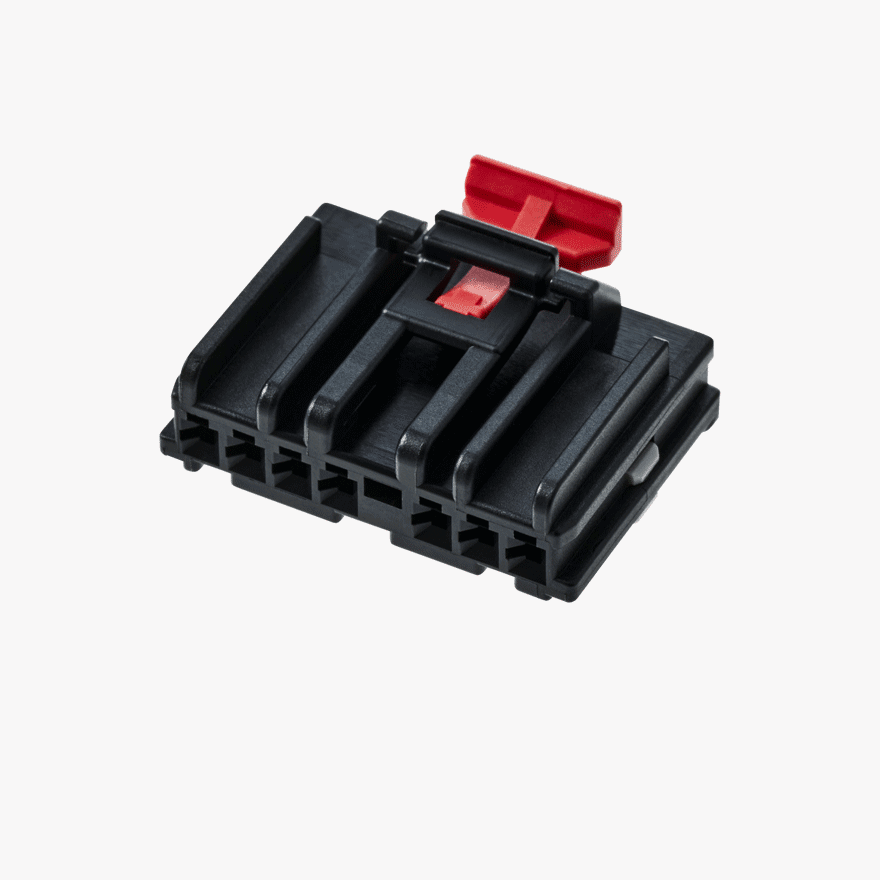

020 Double Lock & CPA 7Pin Female Connector Black

Ask an Expert Request a Sample

PRODUCT DESCRIPTION

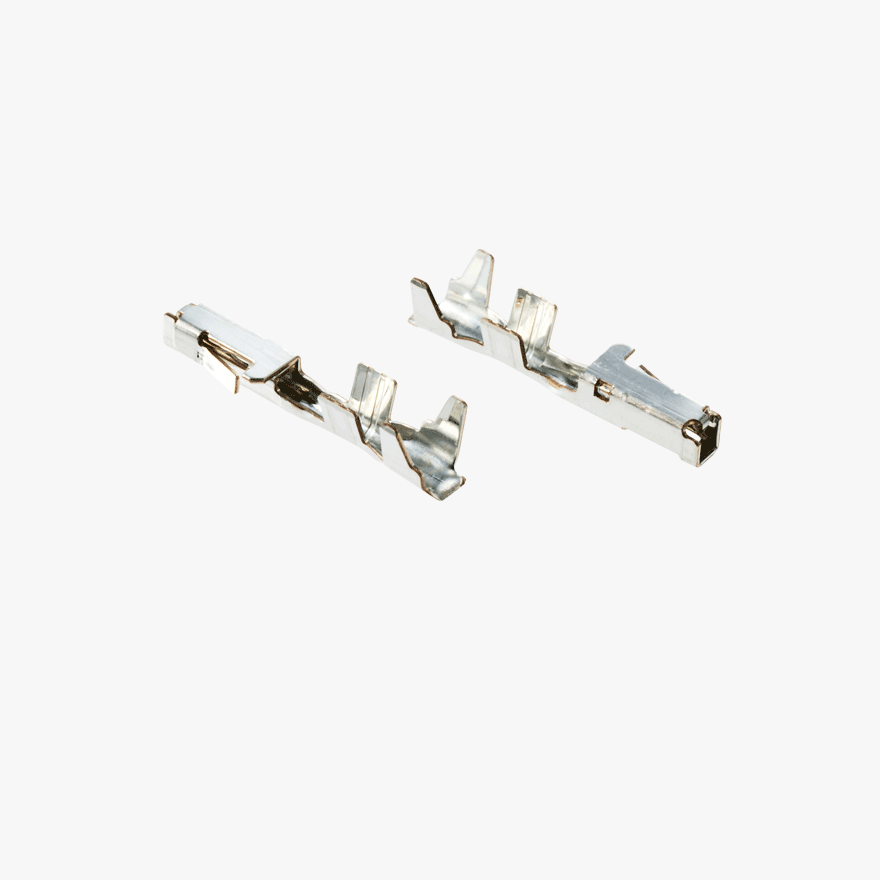

The blade width of male Terminal for this Connector is 0.020 inch (0.5mm)
The terminal pitch of this connector is 2.0mm
It has applied the TPA of side type for the assemble workability
This product is similar size with 020 Series even included the mounted TPA
Pre-assembled TPA & CPA
Reliability Test Specification : ES91500-00, ES91500-03, LV214, USCAR-2

Download 3D Models

Technical Details

Pitch
(mm) 2.0
Gender Female Connectors
Connector Style
Number of Positions 7
Current Rating
(A) 5
Contact Resistance
(MΩ (Max.)) 30
Insulation Resistance
(MΩ (Min.)) 100
Dielectric Strength
(AC V) 1000
Temperature Range
(°C) -40 ~ +125
Reliability Test
Specifications ES91500-00, ES91500-03

Housing Material PBT-GF30
Housing Colour Black
Terminal Material
Housing Material UL
Rating HB

Connector Size height
(mm) 7.72
Connector Size width
(mm) 17.90
Connector Size length
(mm) 15.20
Mated Size height
(mm)
Mated Size width
(mm)
Mated Size length
(mm)

FILE NAME EXTENSION UPDATED DATE
KH1900021-21_2D PDF 01/2023 Download
KH1900021-21_3D STEP 01/2023 Download

FILE NAME EXTENSION UPDATED DATE
ES91500-00_PVT PDF 02/2023 Download
ES91500-03_PVT PDF 02/2023 Download
